The SuperADAM
Modified by John Lundy — Lundy Electronics

SuperADAM 2026
★ NEWEST MODEL

Unit arrivied April 2026

Modified by John Lundy (2026)

Lundy Electronics

The most advanced SuperADAM ever built. Featuring rare dark beige consoles, a custom machined COM bracket, DRAM-to-SRAM conversion on both Delta and Gamma boards, and optional VGA output — all with nothing exiting the top cover.

Case & Cosmetics

- Rarer dark beige bottom consoles for the first two units made available

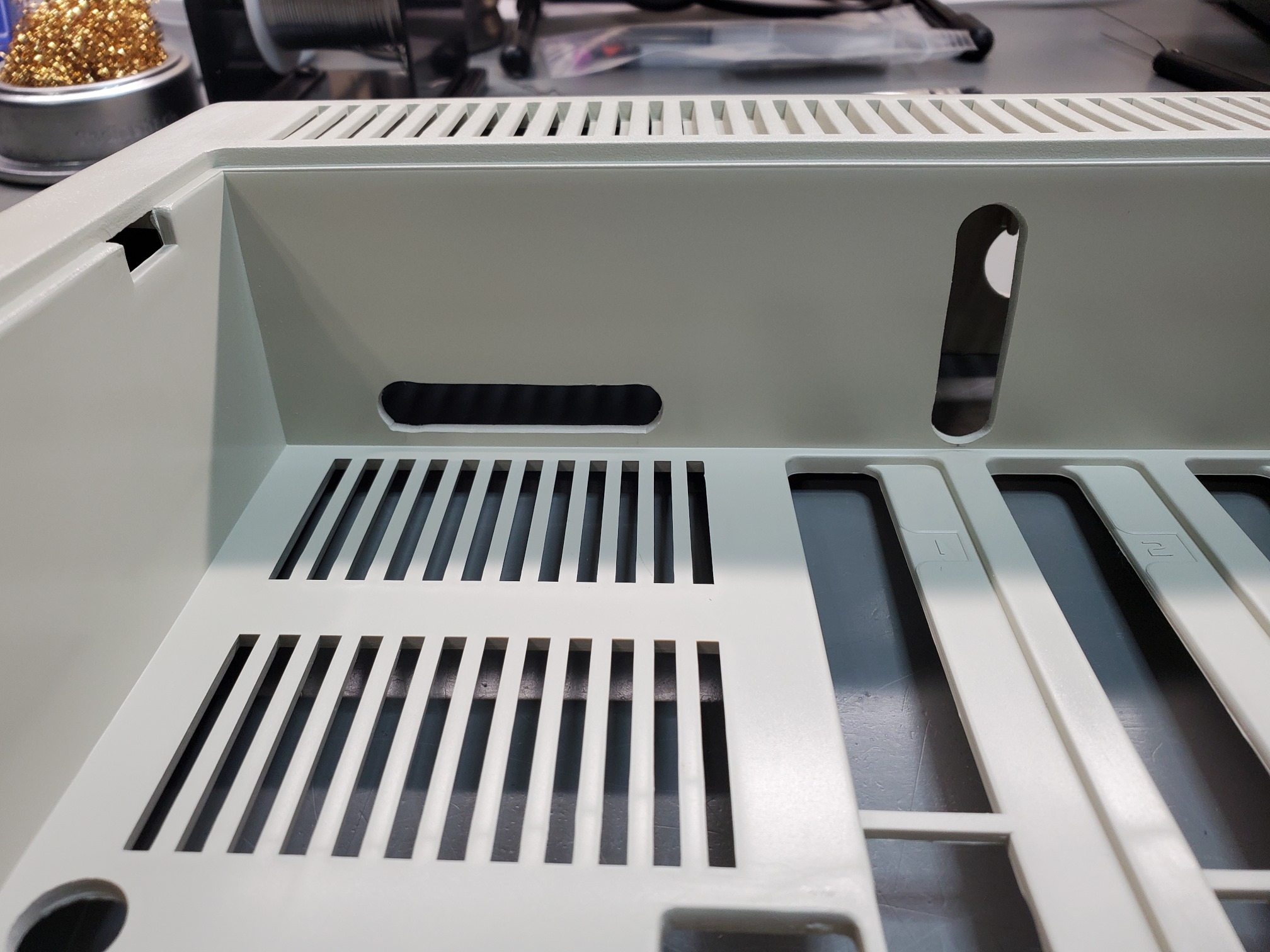

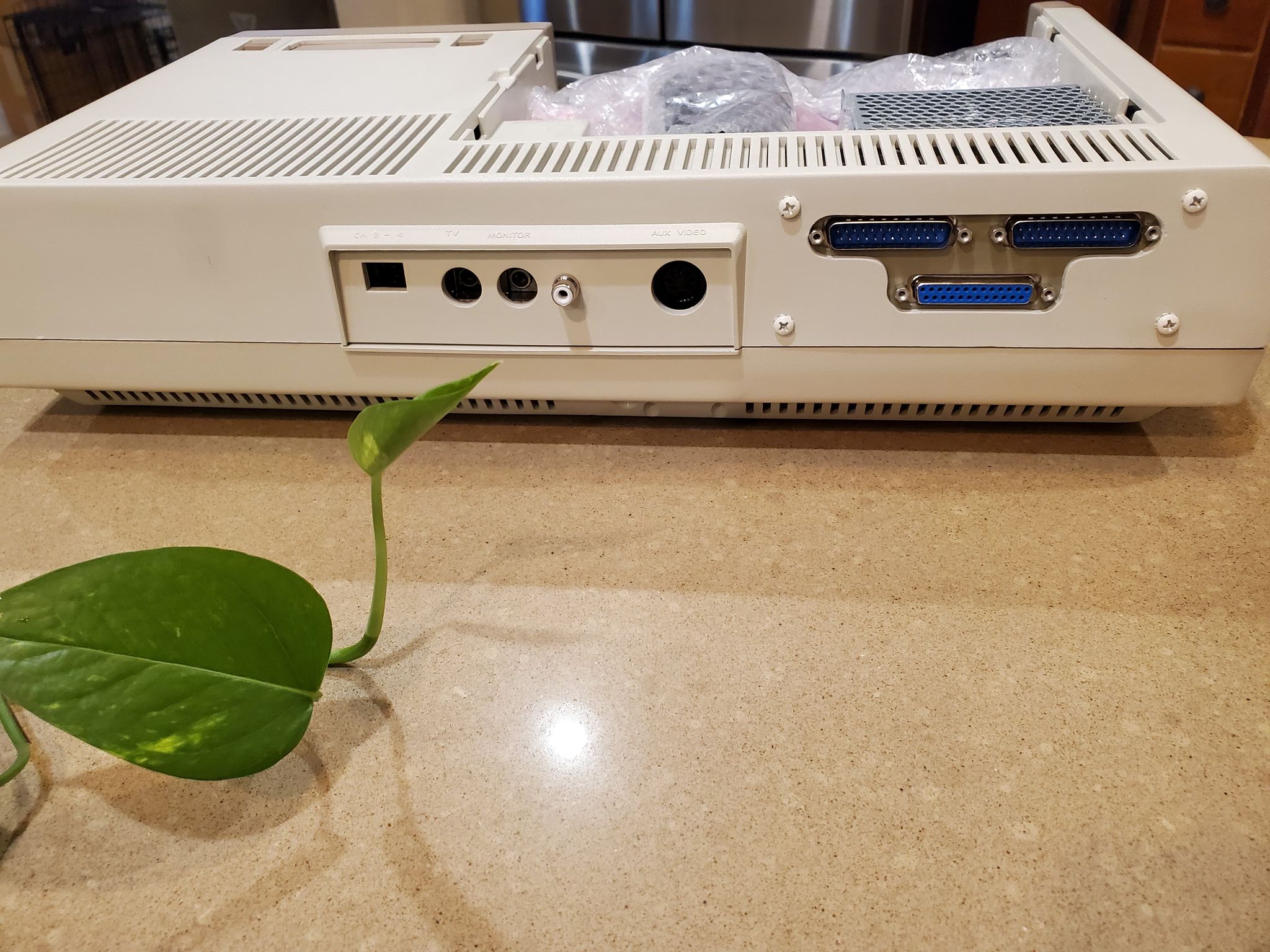

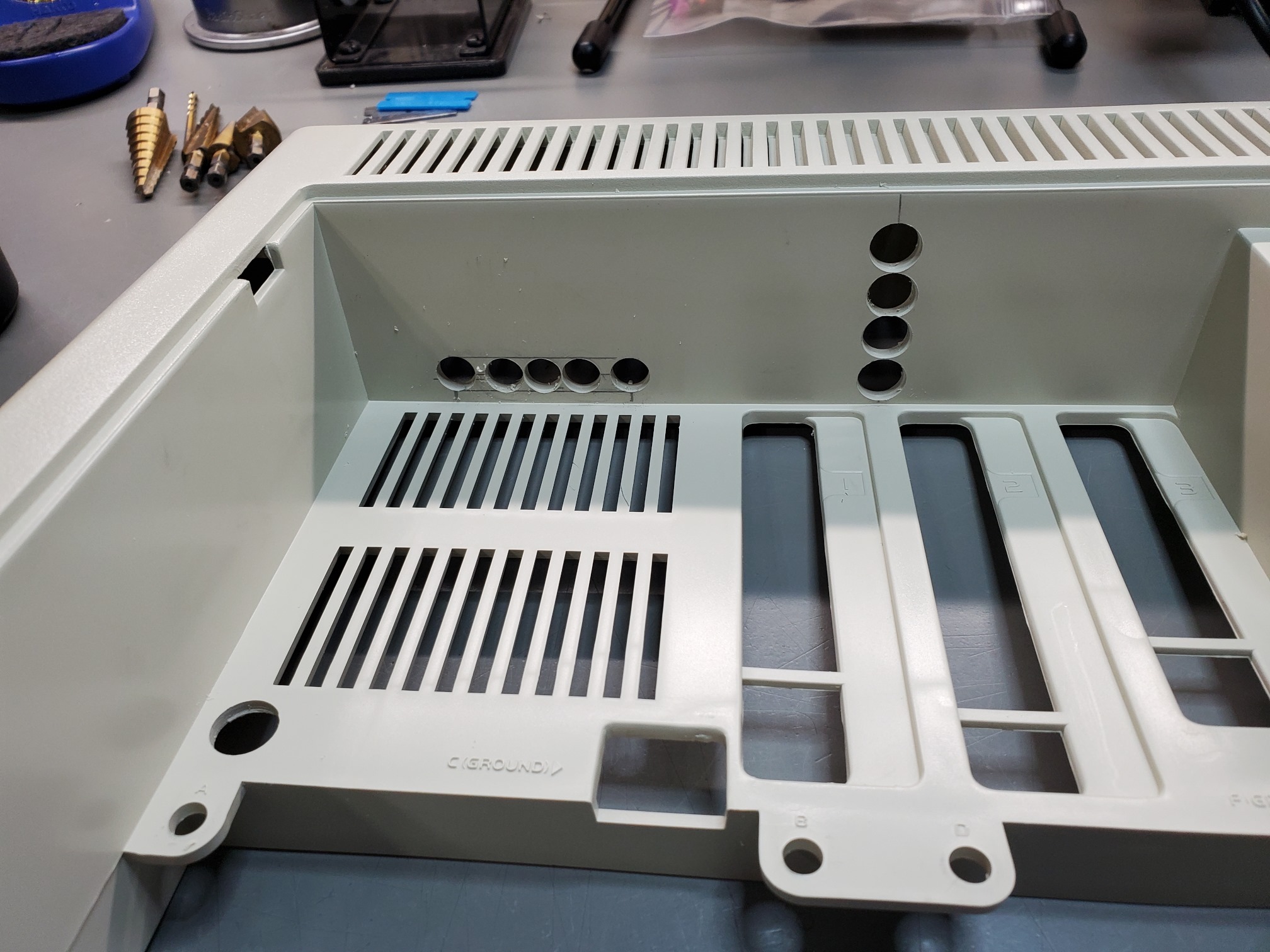

- Case modifications to cleanly route internal power supply, terminal, parallel, and external data drive cables utilizing a custom machined dark beige powder coated metal COM bracket mounted on the back. Nothing hangs out the top cover
- Professionally printed brushed aluminum SuperADAM front decal
- Thoroughly cleaned console with new label set. Best effort to find matching dummy data drive bezels to house the internal drive emulators
- New proper sponge rubber feet

Power

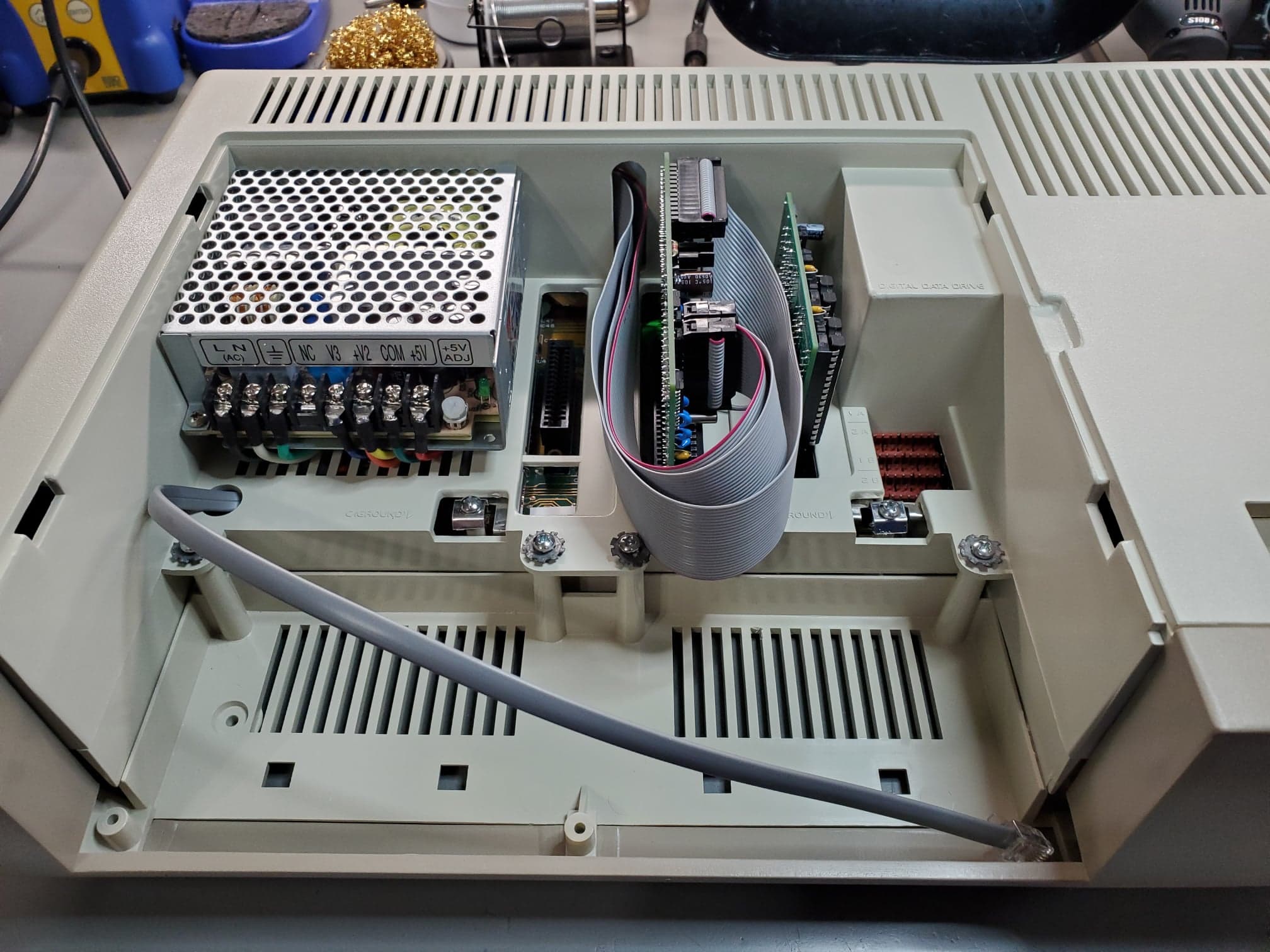

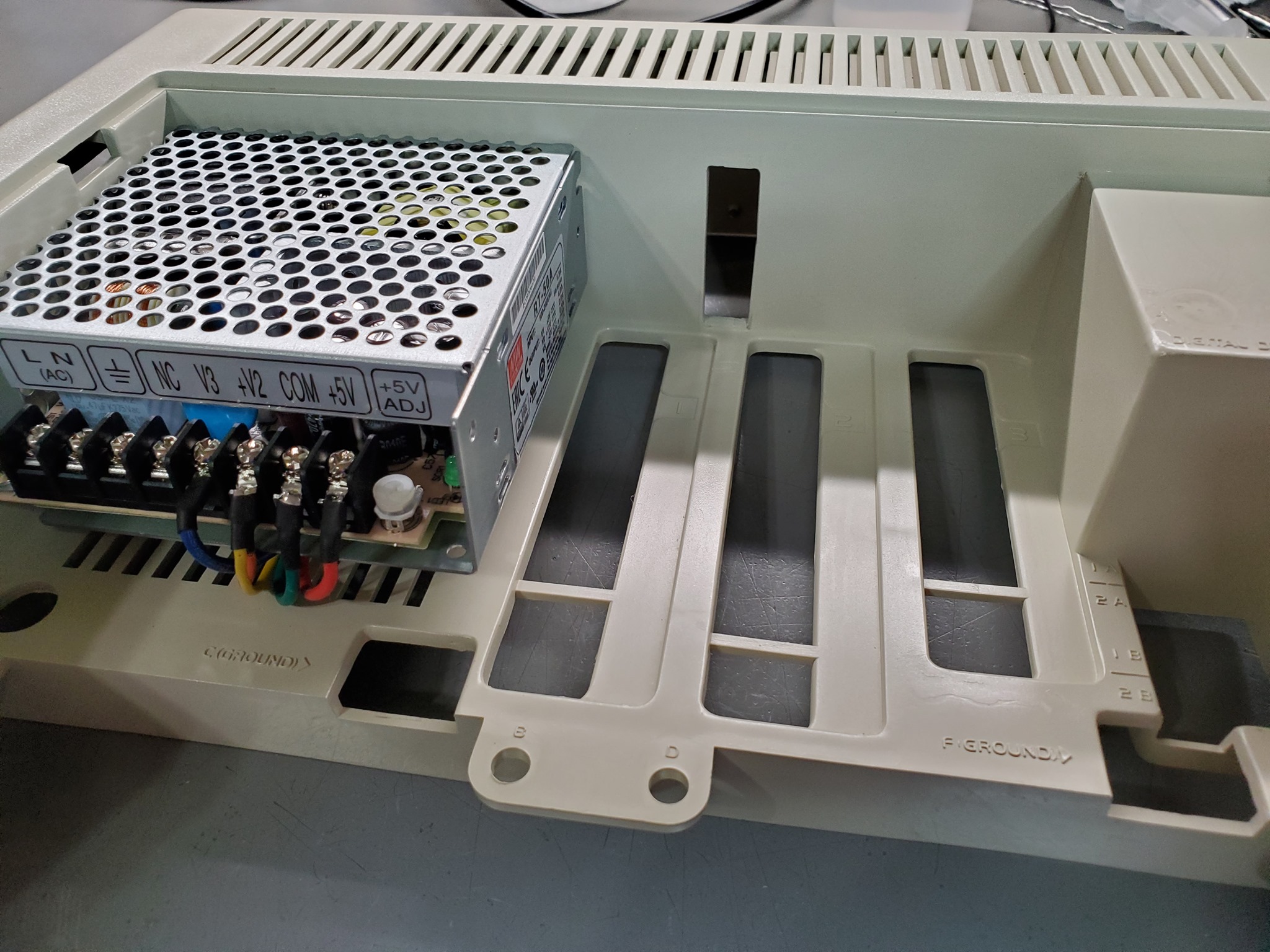

- Internal power supply
- Rear IEC fused power input module
- Left side mounted power switch towards the front
- Red LED power indicator on front left

Video & Audio

- If video poll leans towards VGA: No-cut beige bracket covering the RF channel selector, TV, and monitor port area for VGA and audio out connectors. Can always be removed and use included original VDP to drop back to factory video. There is now a socket to make the change easily if desired
- If video poll leans towards composite only: An audio RCA connector will be added next to the monitor RCA connector. Will be recessed in its own hole for a factory look
- Audio balance fix mod for using SGM and Speech Synthesizer

Board Upgrades

- Complete capacitor kit, including tantalum capacitors
- New cartridge connector for reliability
- Delta board DRAM to SRAM converter
- Gamma board DRAM to SRAM converter (new product — not yet publicly released)
- Thoroughly cleaned PCB and polished I/O fingers
- Ultrasonic cleaned joystick connectors

Connectivity & Expansion

- MIB238-WiFi board (WiFi modem, terminal, parallel port, expansion ROM socket, and memory addressor signal generator connection)
- 1MB RAM Expander board
- Internal ADAMnet board connection with printer reset silencer. Still allows +5 out of side power connector to power a roller controller and factory printer ADAMnet connectivity

Storage

- Internal drive emulator (ADE)
- SD DDP (internal SD data drive)
- External data drive, housing, and cable

Software

- SmartBASIC XROM in MIB238 boot ROM socket — Console can boot instantaneously to SmartBASIC

SuperADAM 2026 Gallery

📷

Photo gallery will be added once the unit arrives

SuperADAM WiFi

Modified by John Lundy

Lundy Electronics

Case & Cosmetics

- Console itself

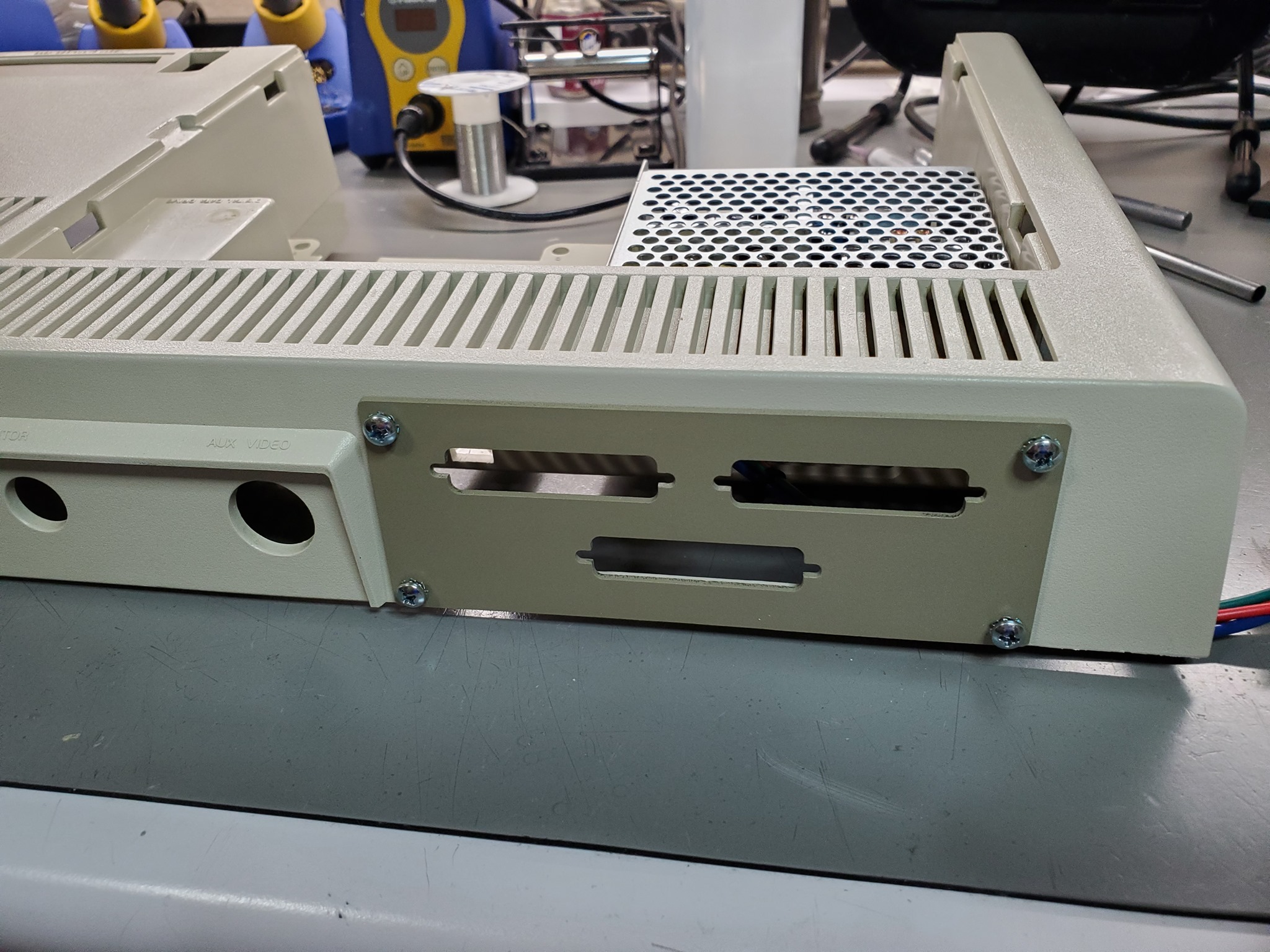

- Professionally machined and powder coated COM panel bracket designed just for an ADAM console
- All connectors ultrasonically cleaned for reliable connections

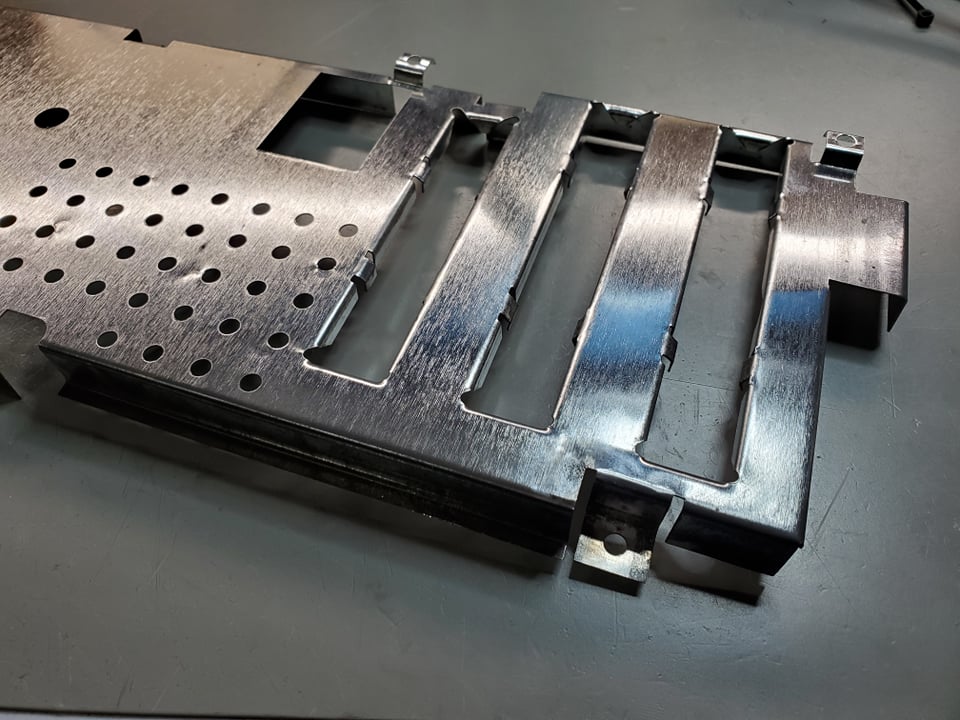

- All hardware polished to a chrome finish
- Other misc parts, materials, wiring, and connectors to make this modded console

Power

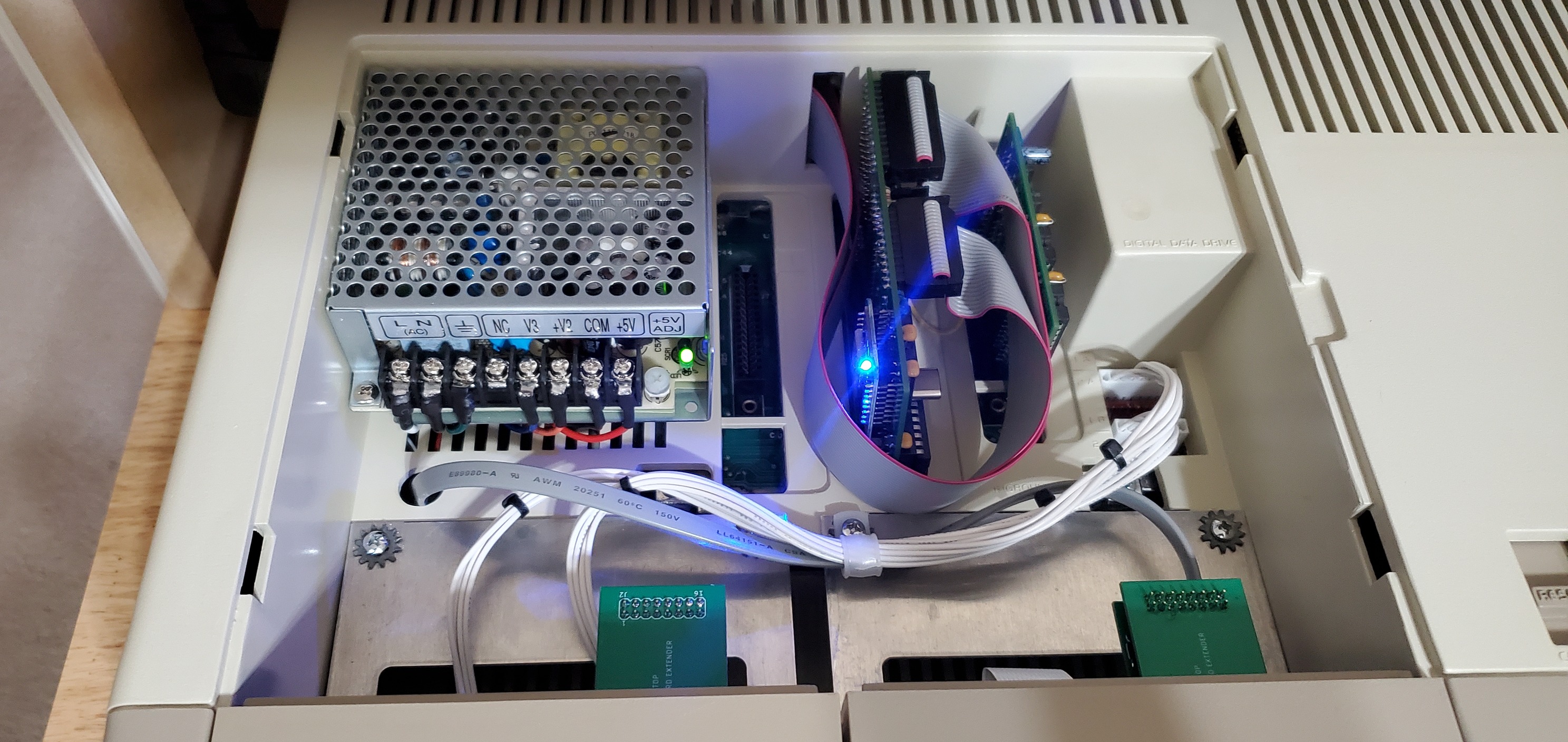

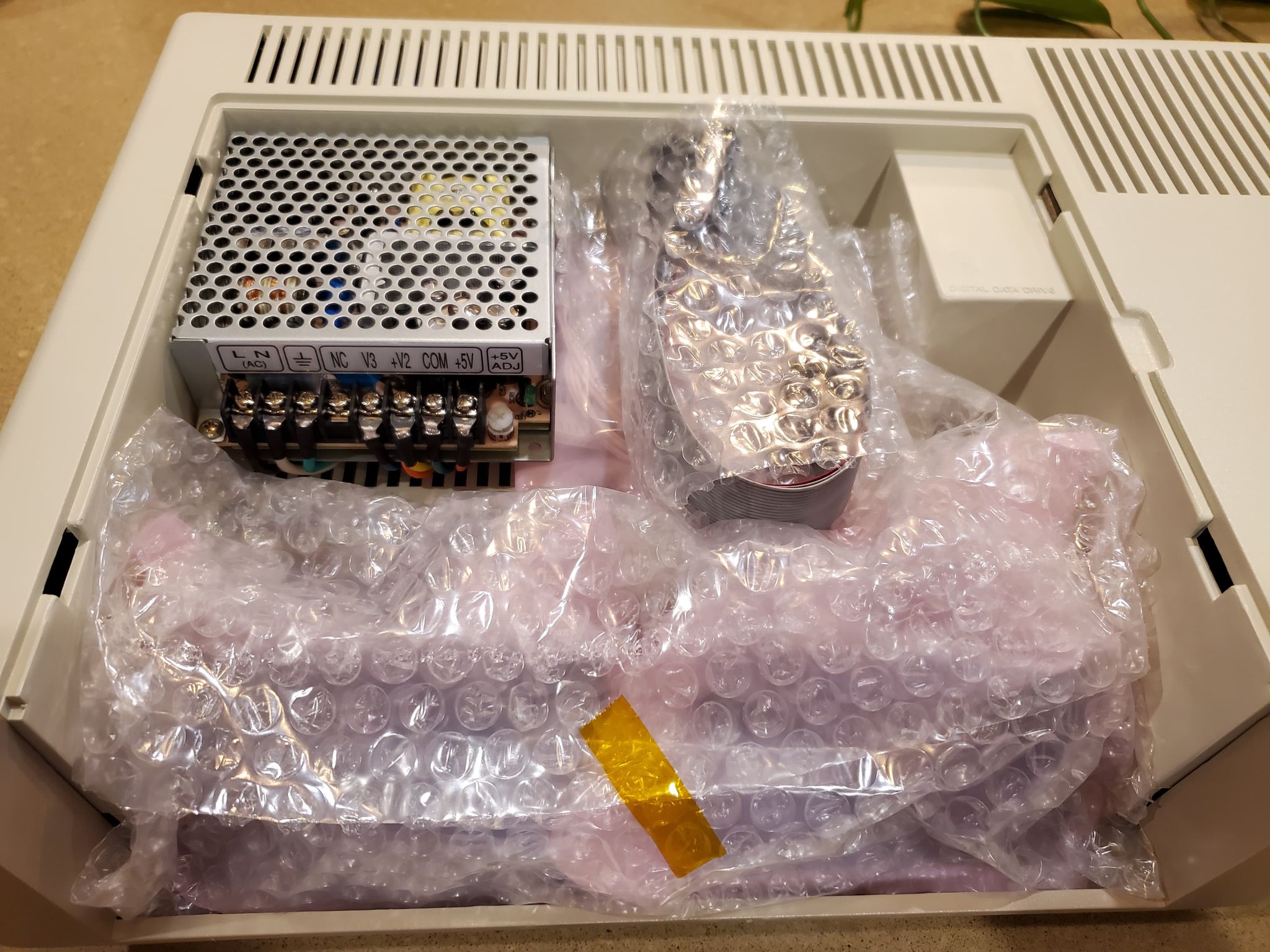

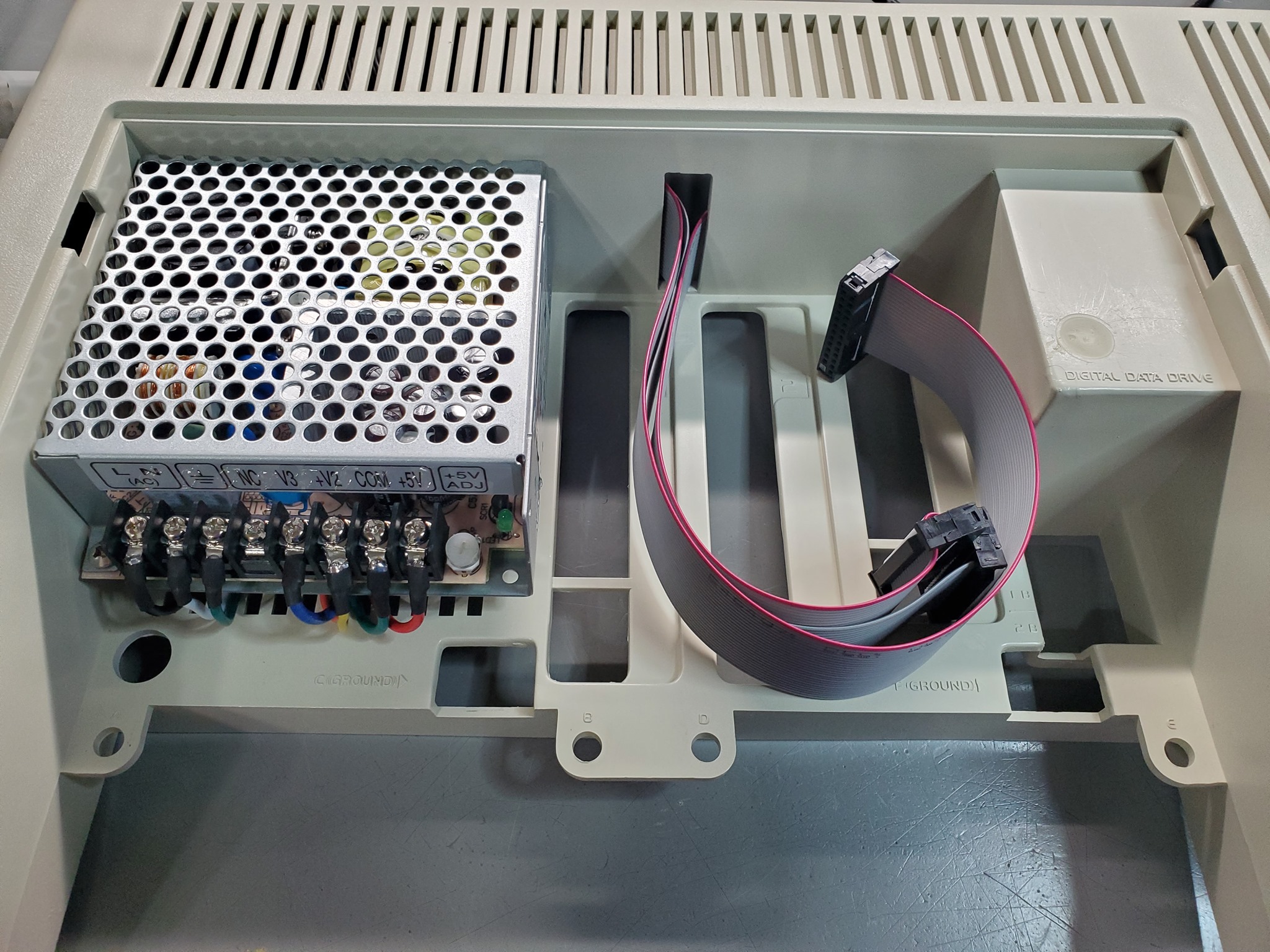

- Internal power supply

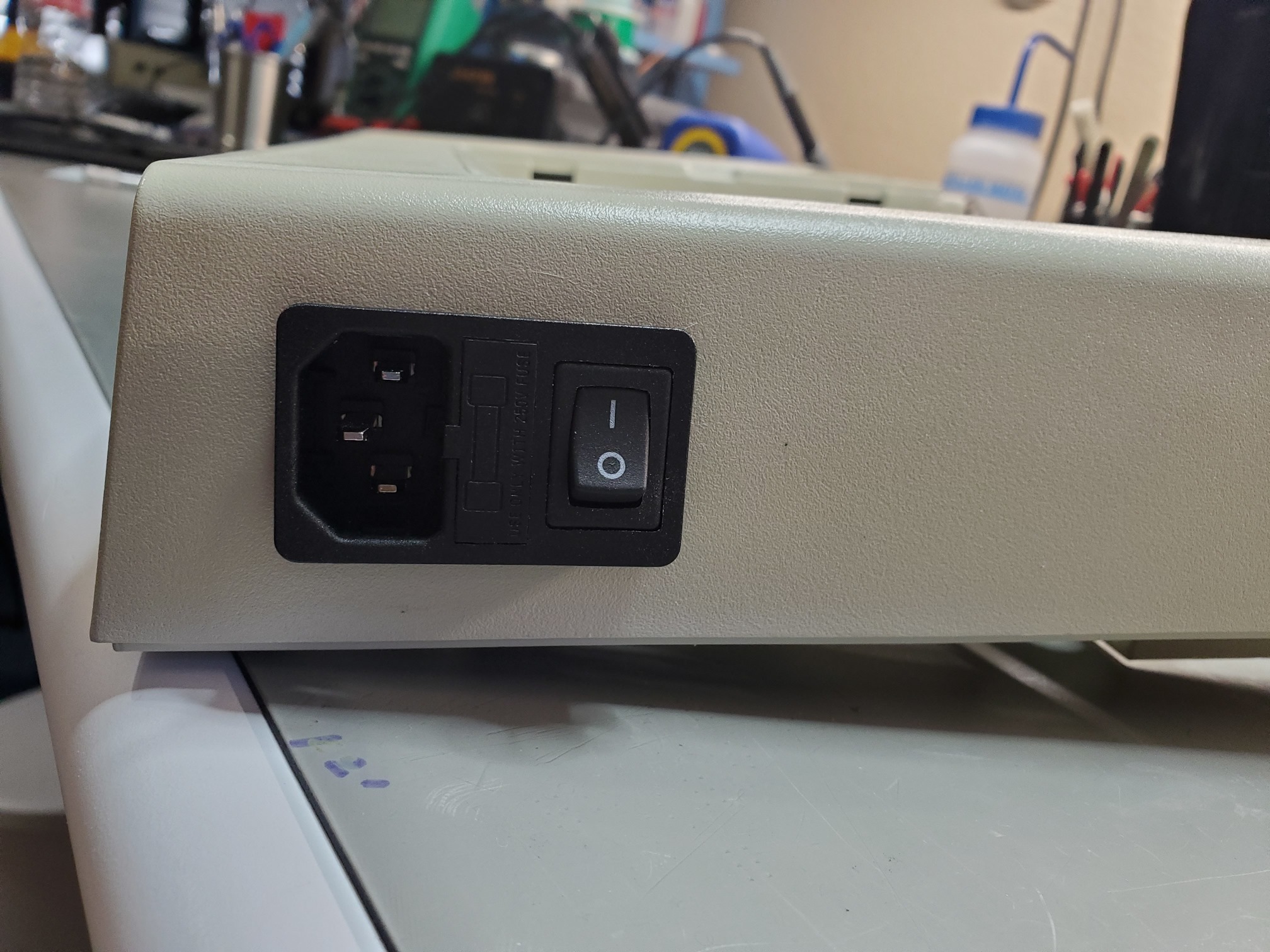

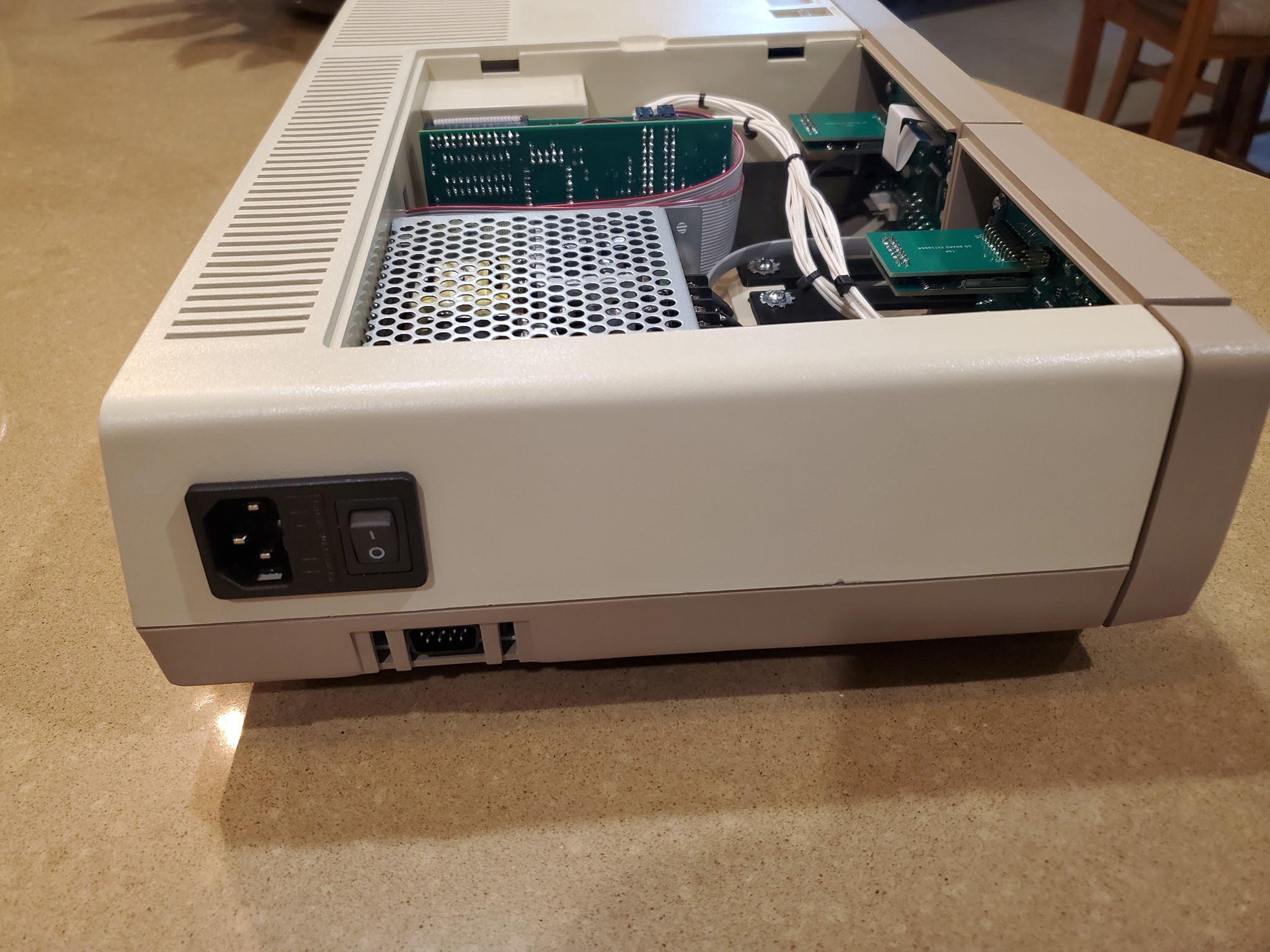

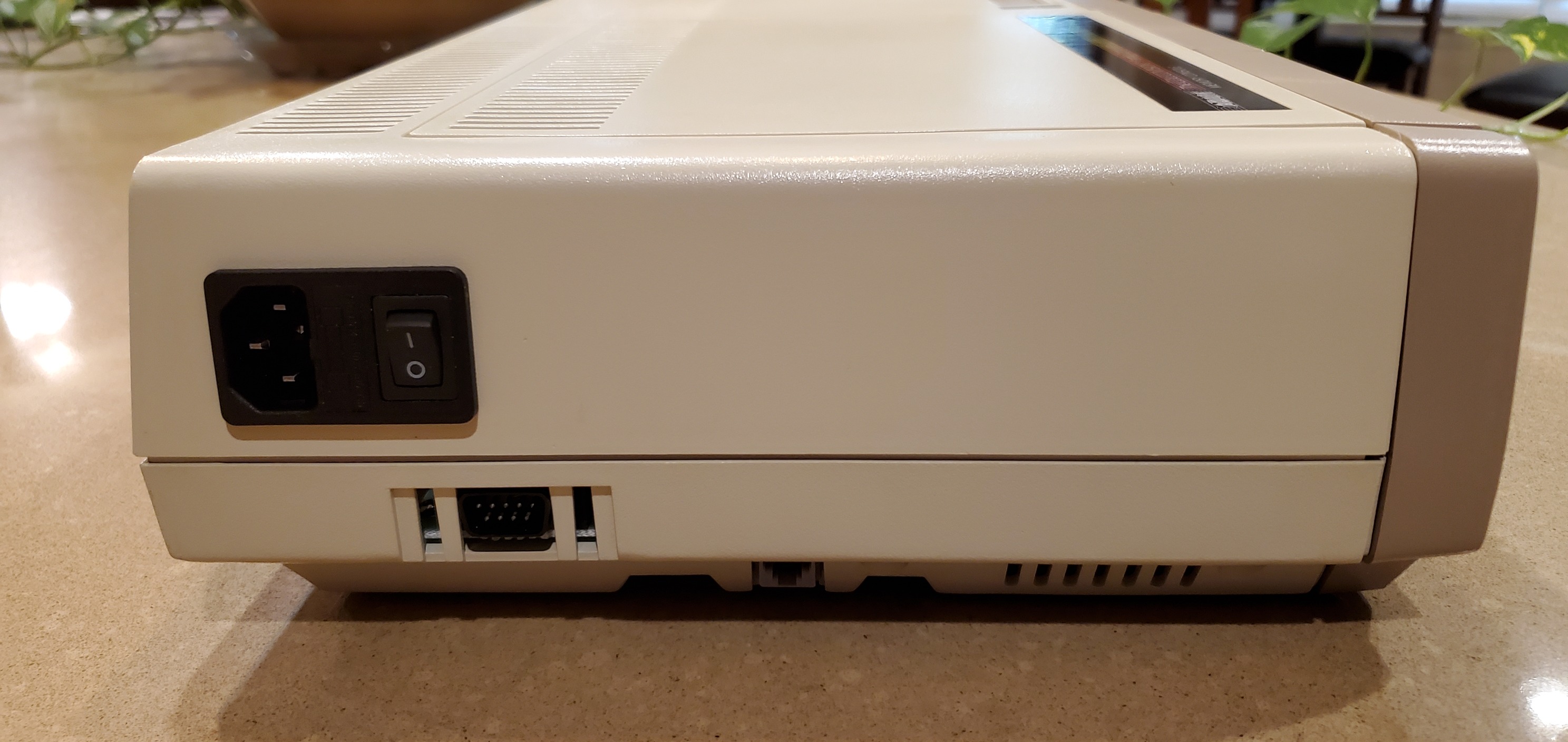

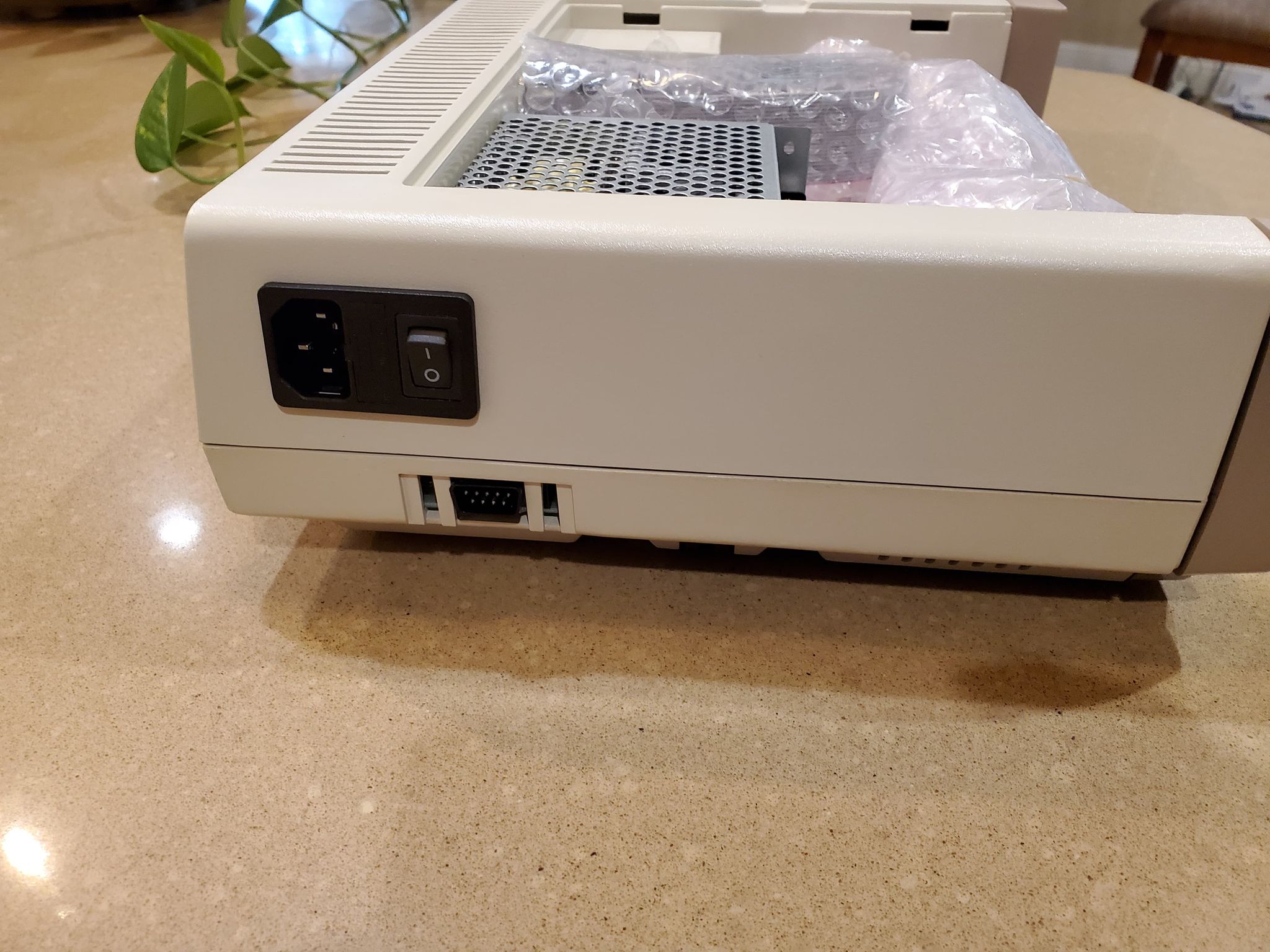

- IEC fused power inlet module and power cord

Video & Audio

- Audio out RCA connector (audio can now be obtained without the need for the DIN connector)

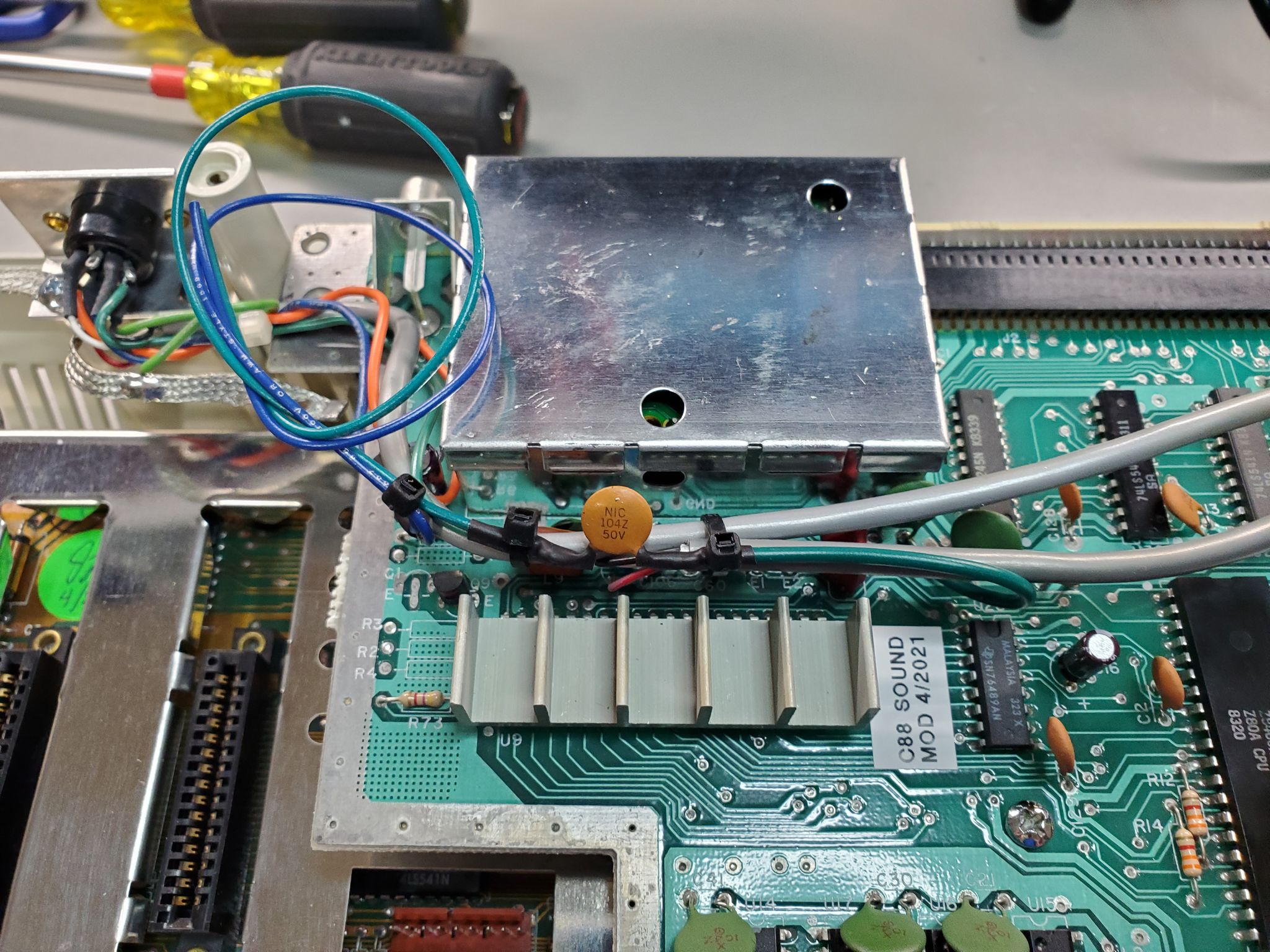

- C88 sound balance mod

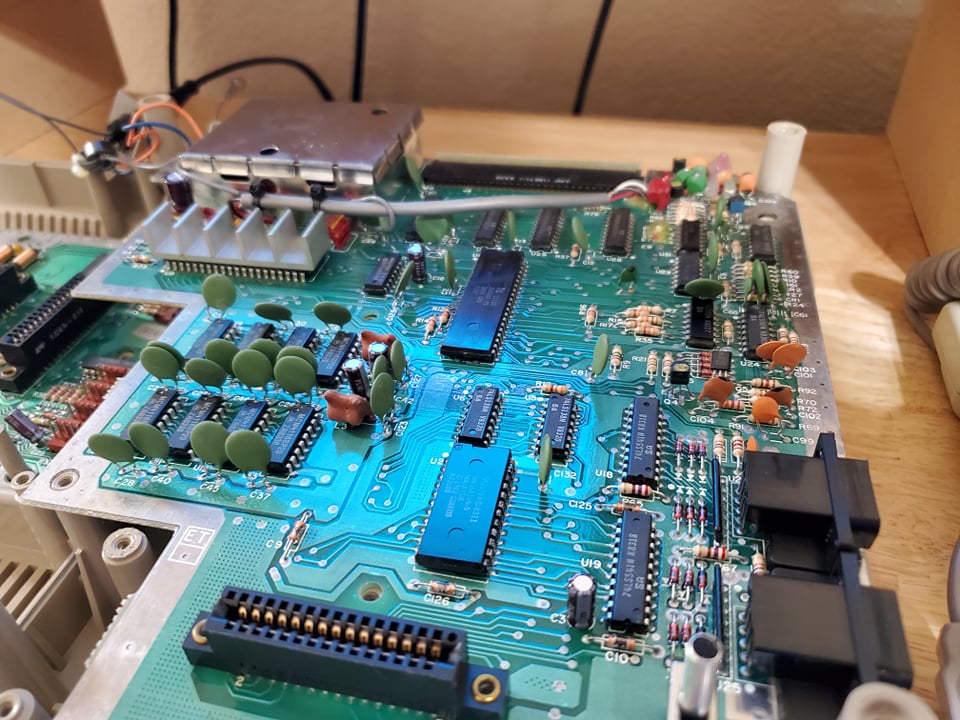

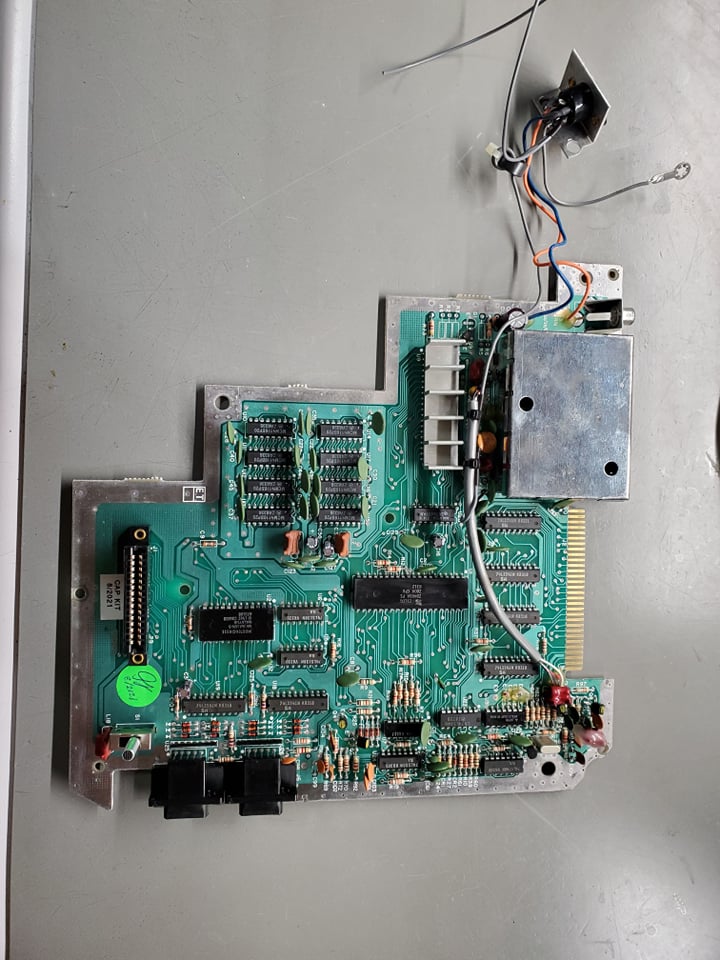

Board Upgrades

- All 4116 DRAM replaced with 4164 DRAM and sockets
- Complete electrolytic and tantalum cap kit

Connectivity & Expansion

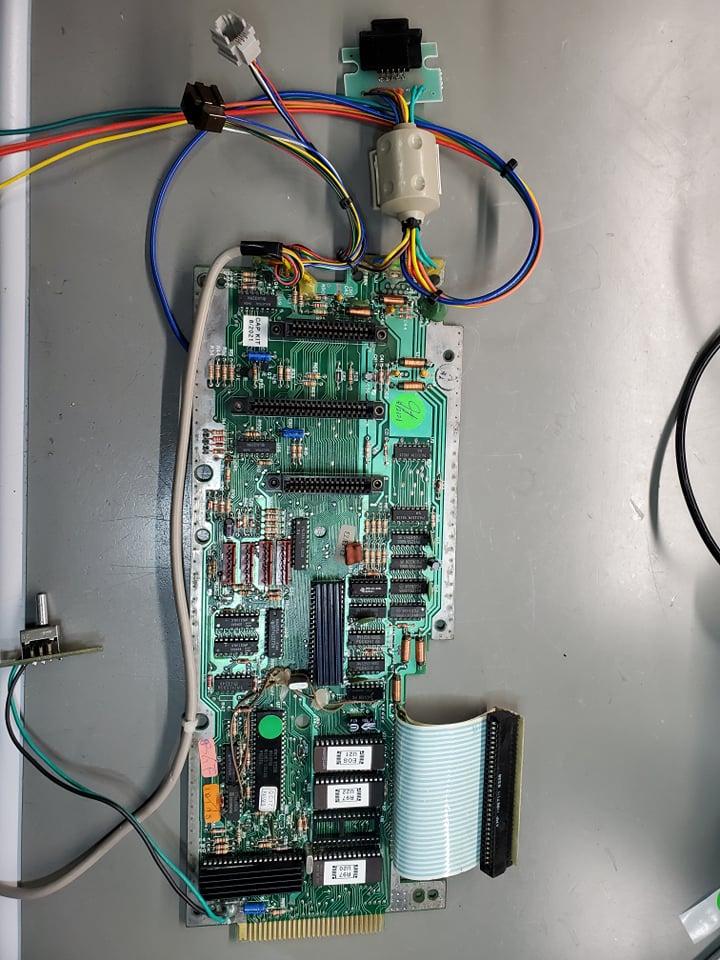

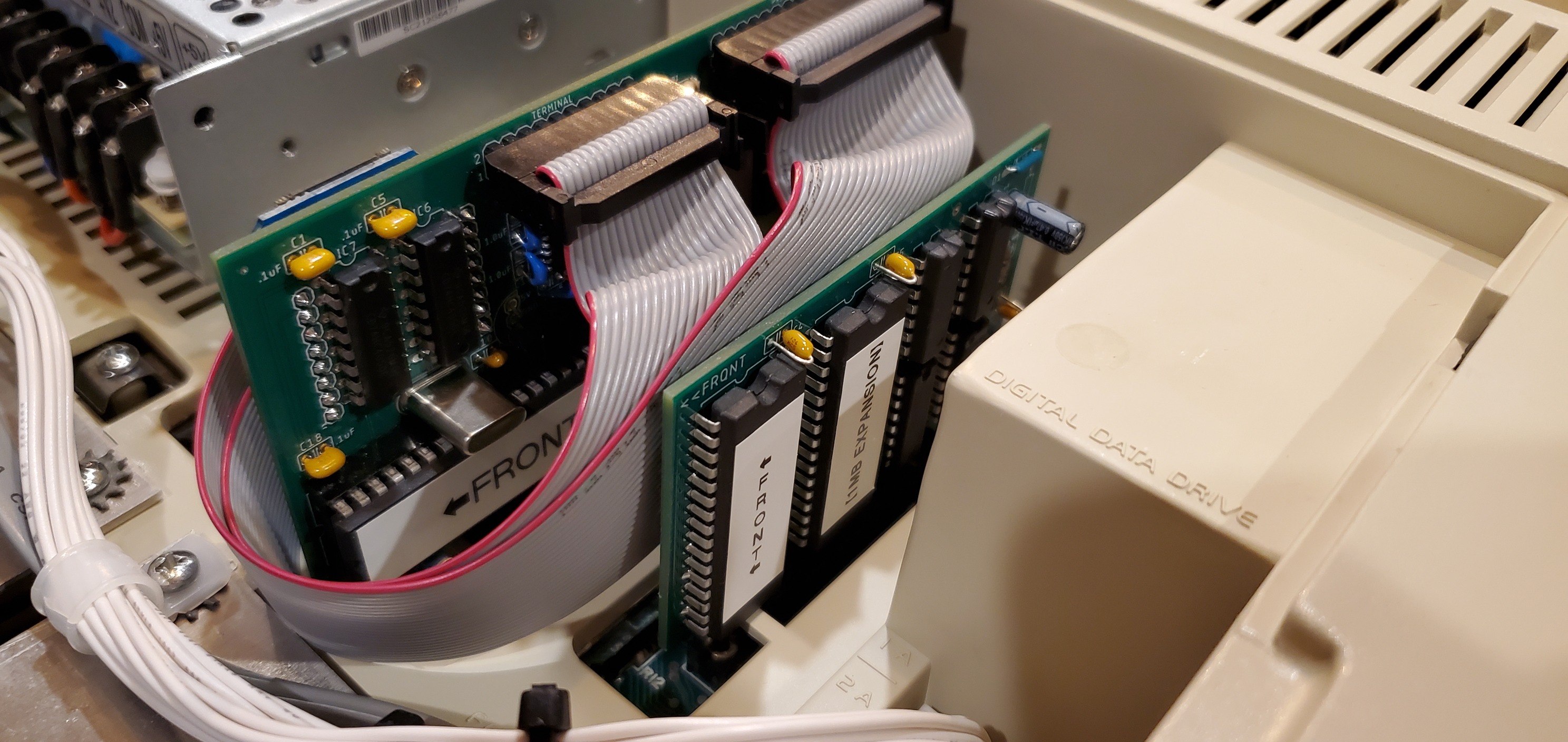

- MIB238-WiFi card (has WiFi modem, terminal serial port, parallel printer port, boot PROM, and memory expander signal generation connector)
- 1MB RAM Expander card

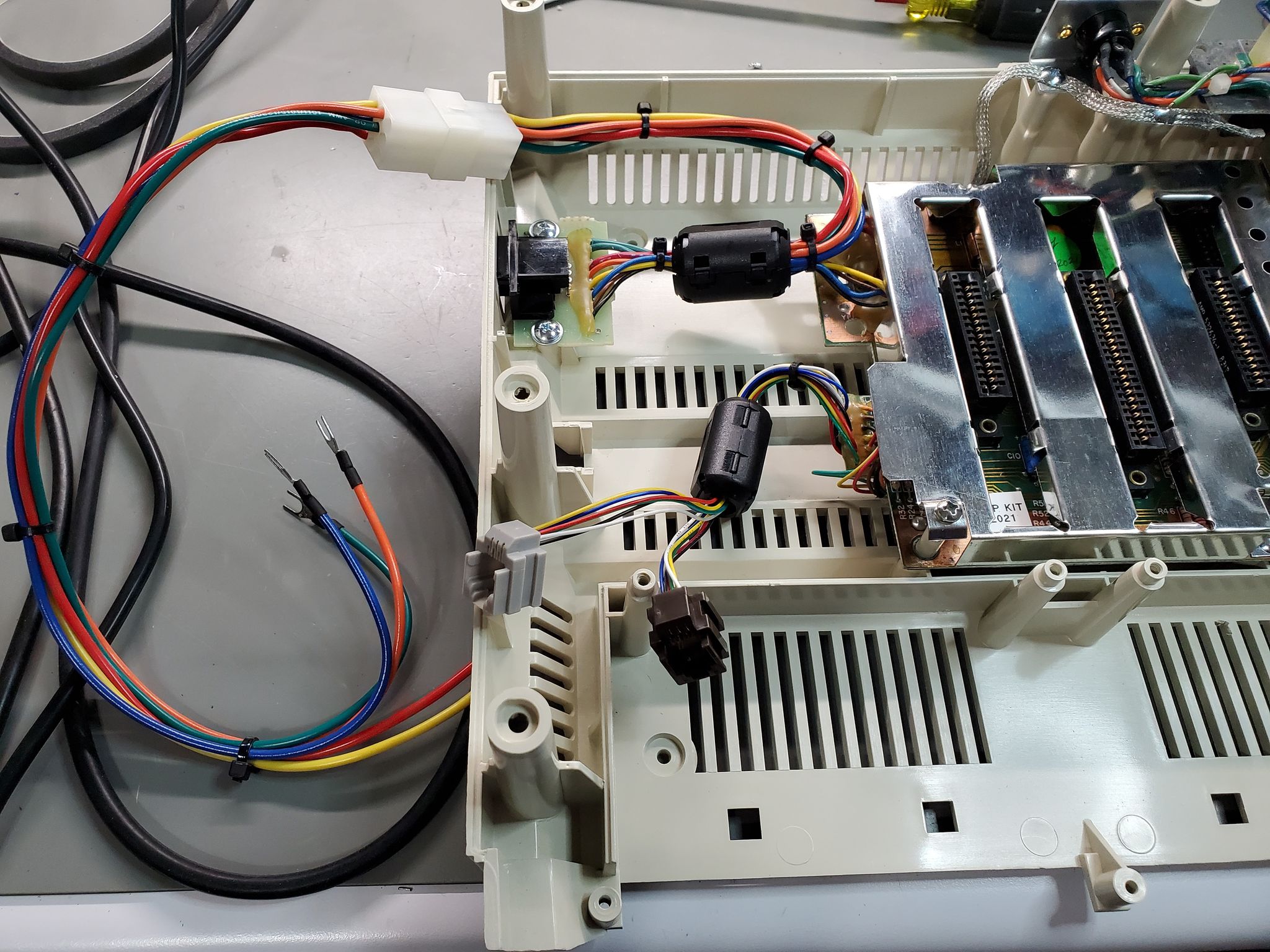

- Internal ADAMnet connector and cable
- ADAMnet to Coleco printer adapter with reset silence included for using a factory printer
- ADAMnet splitter to allow multiple ADAMnet devices on the single left side port if needed
- Two ADAMnet cables for future use
- 80-column terminal connector and internal ribbon cable
- Parallel printer connector and internal ribbon cable
- Memory expander signal wire

Storage

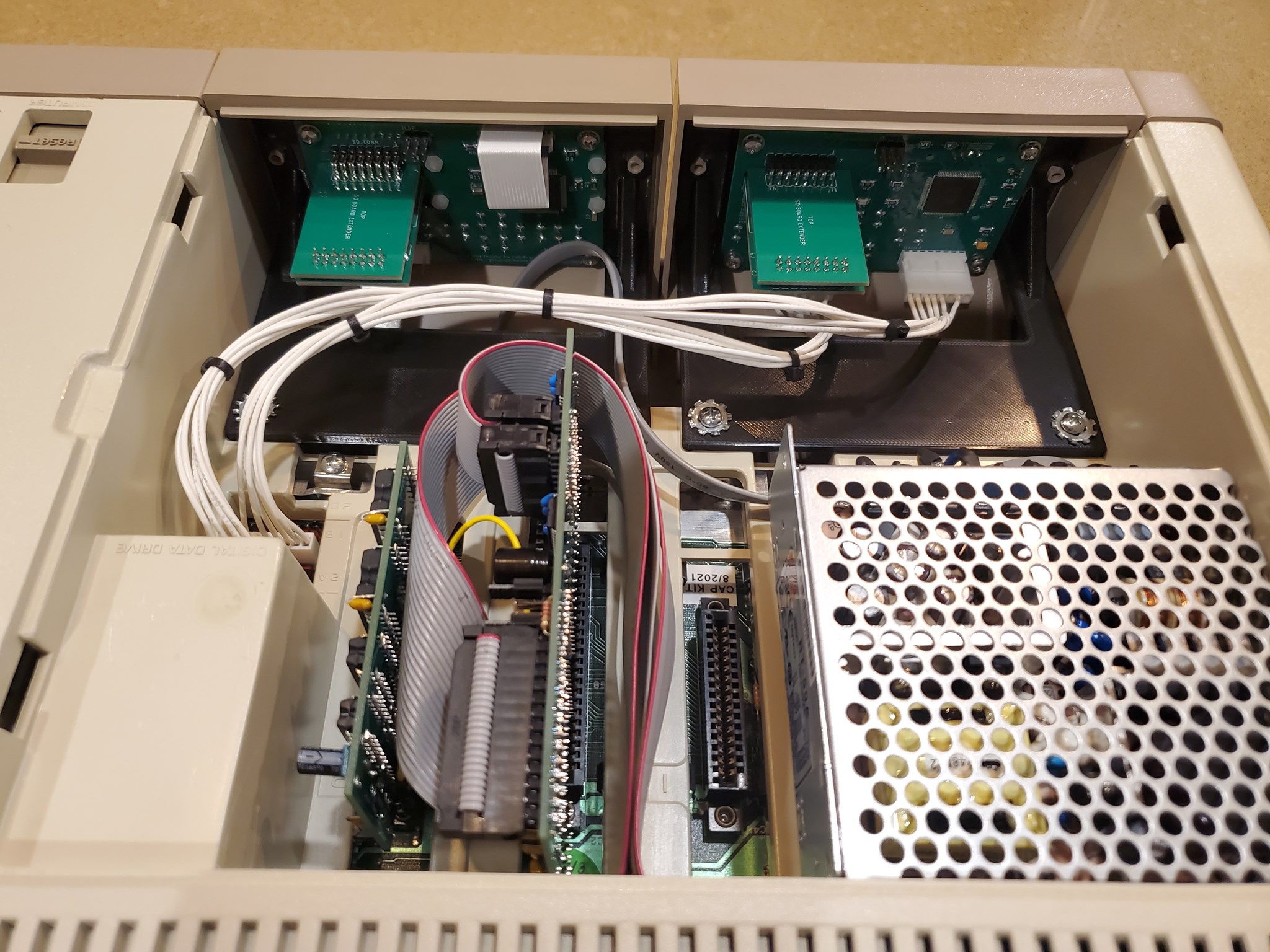

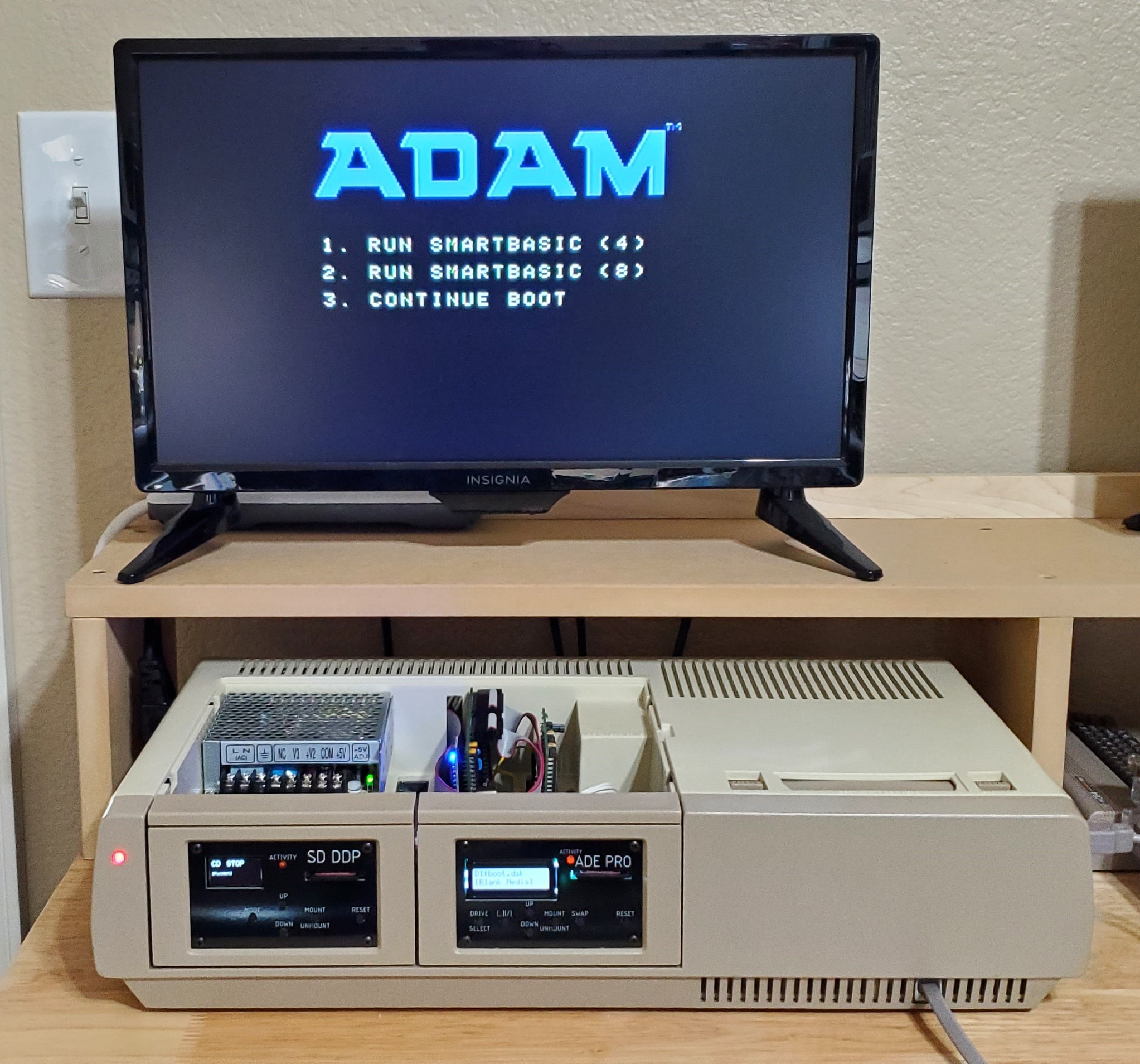

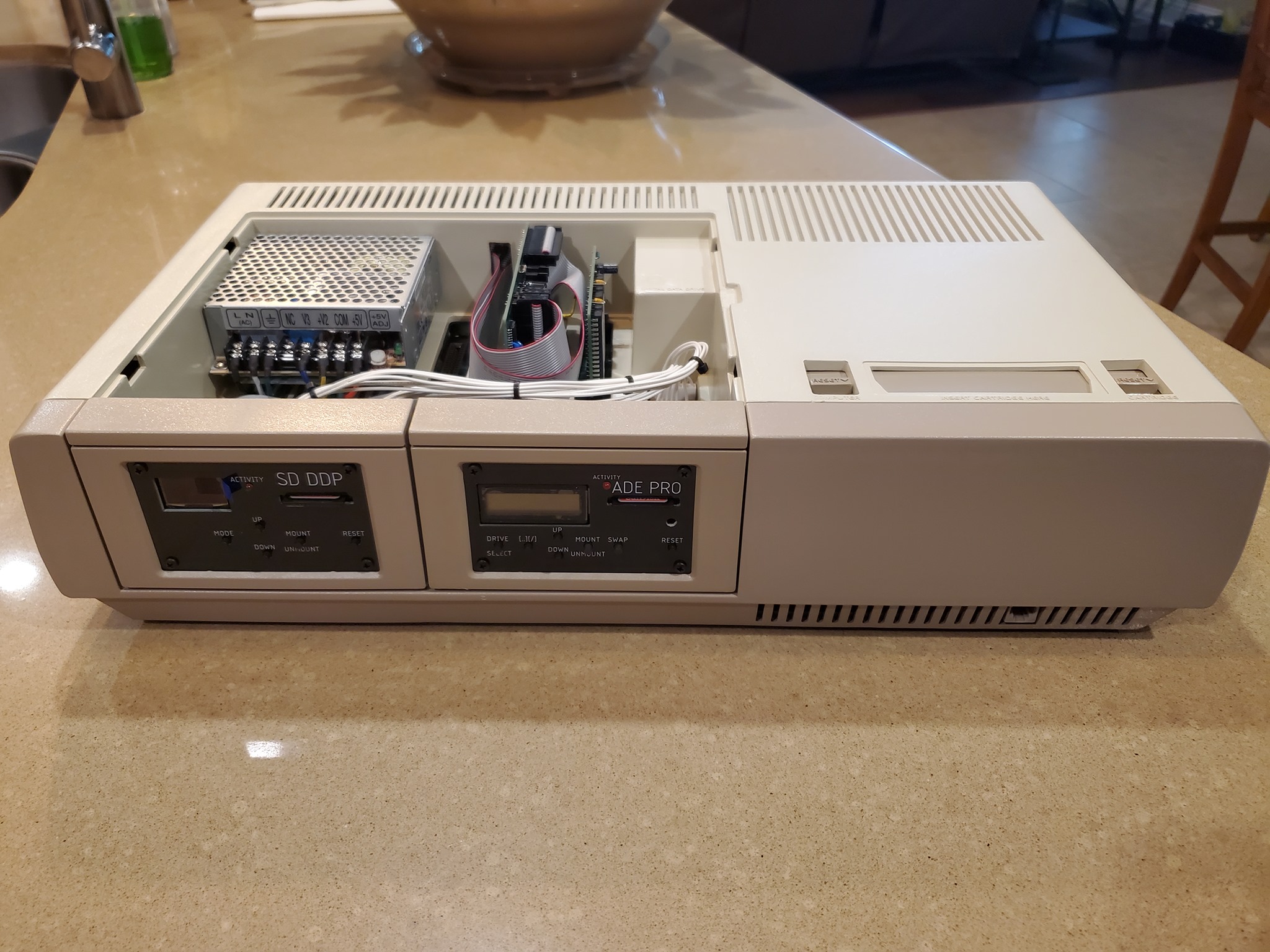

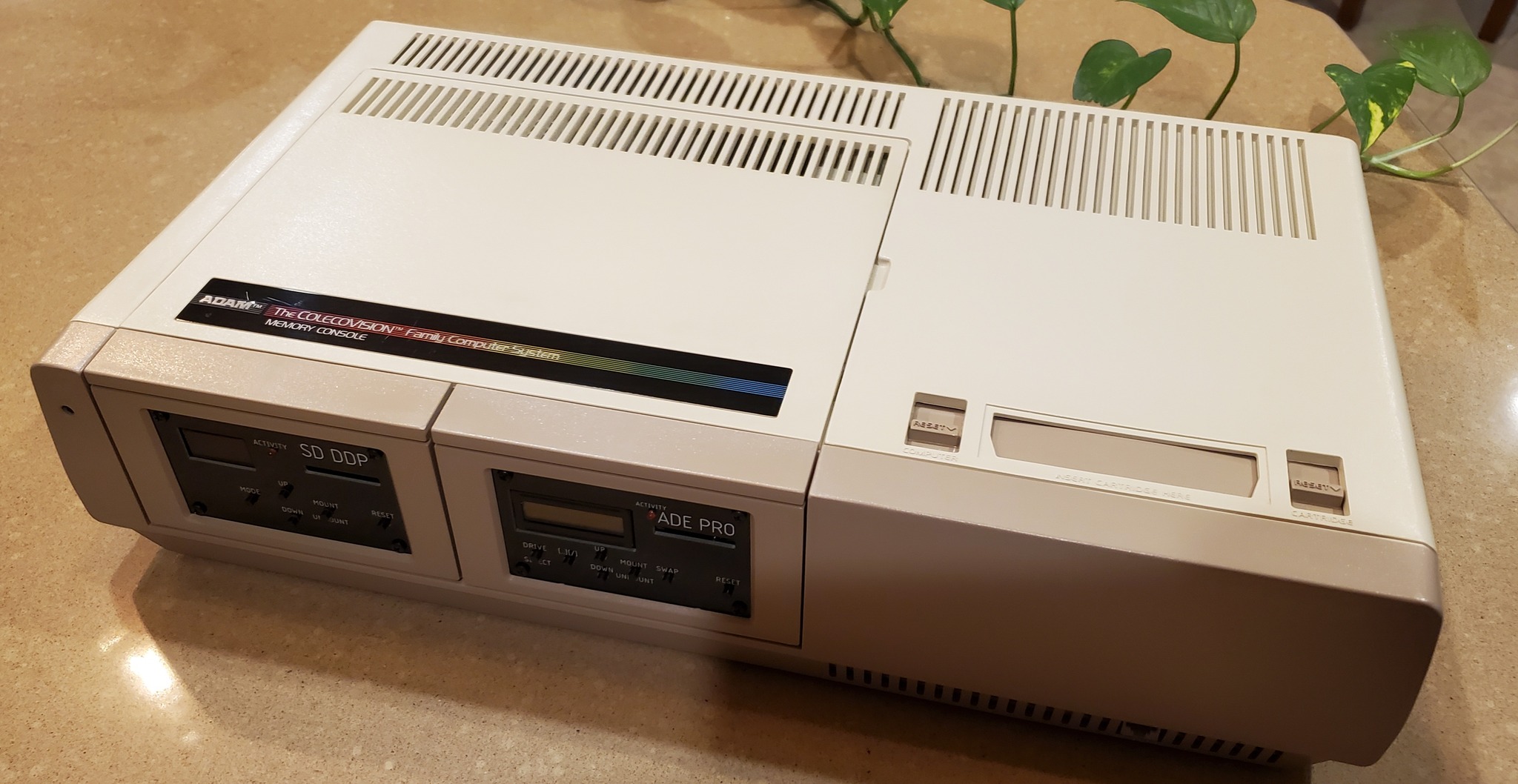

- Internal ADE Pro
- SD DDP

Software

- SmartBASIC boot PROM with integrated AJM printer port #64 patch
- R89 SmartWRITER PROMs with parallel printer support built in

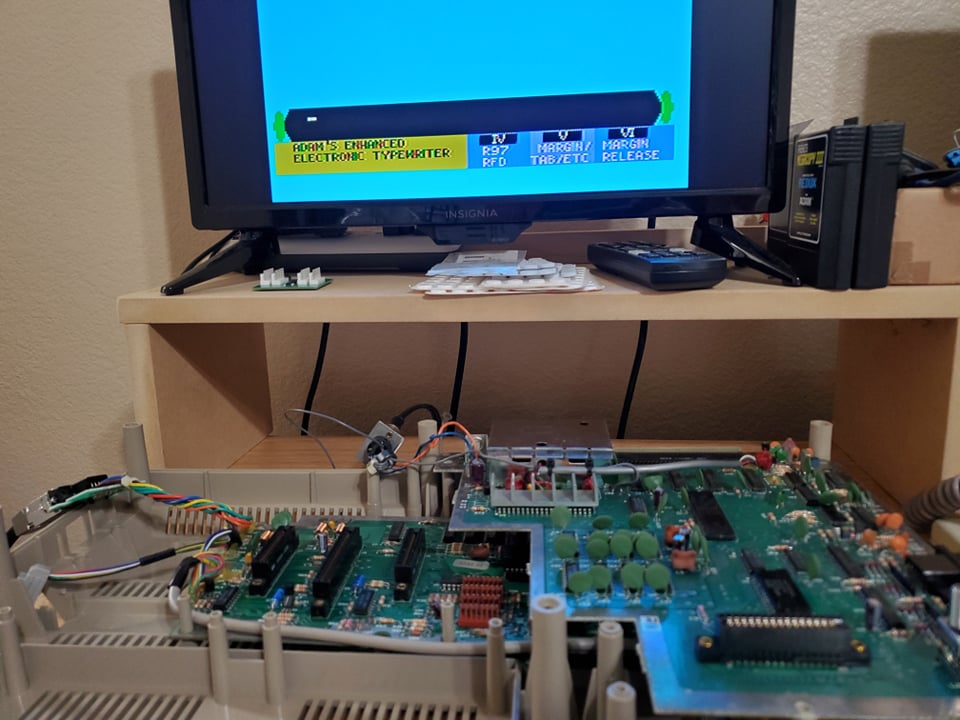

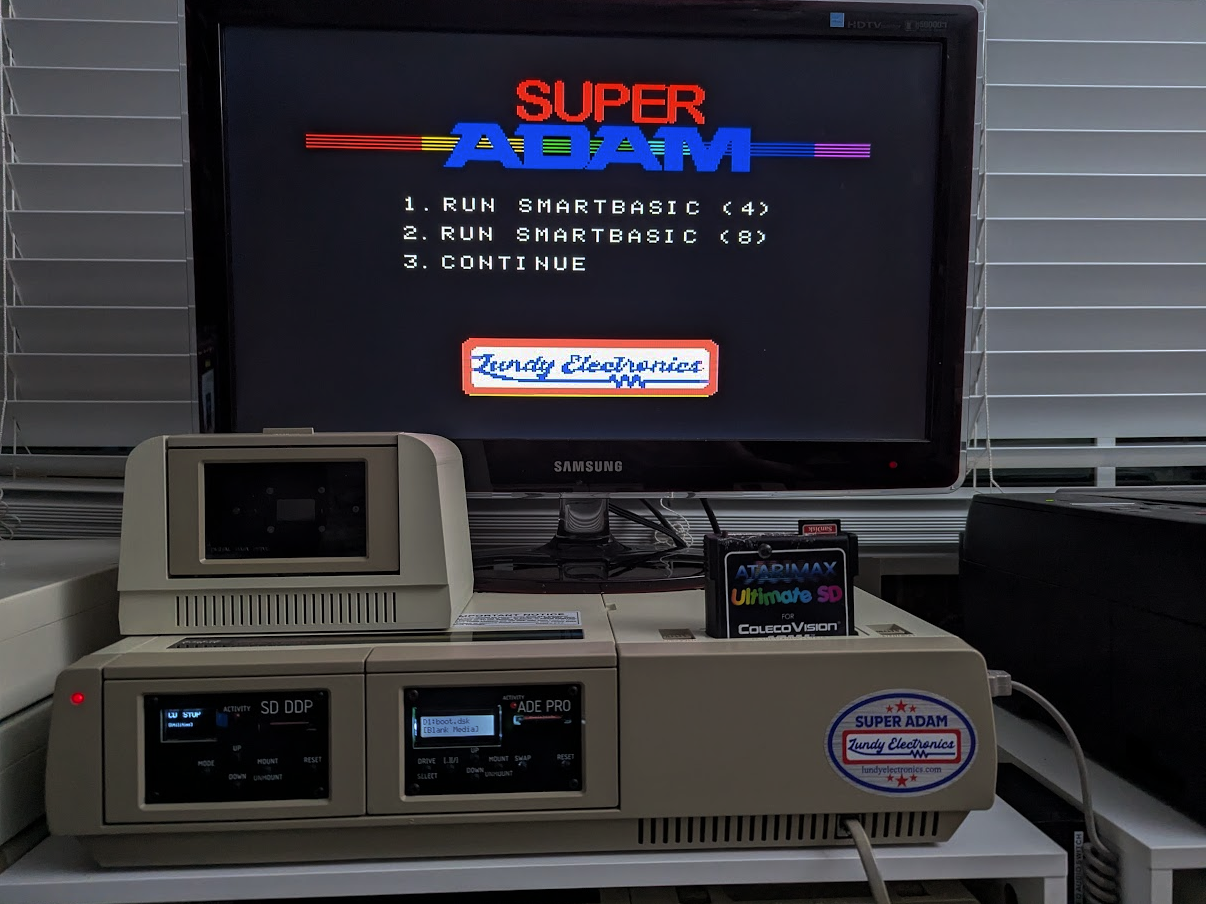

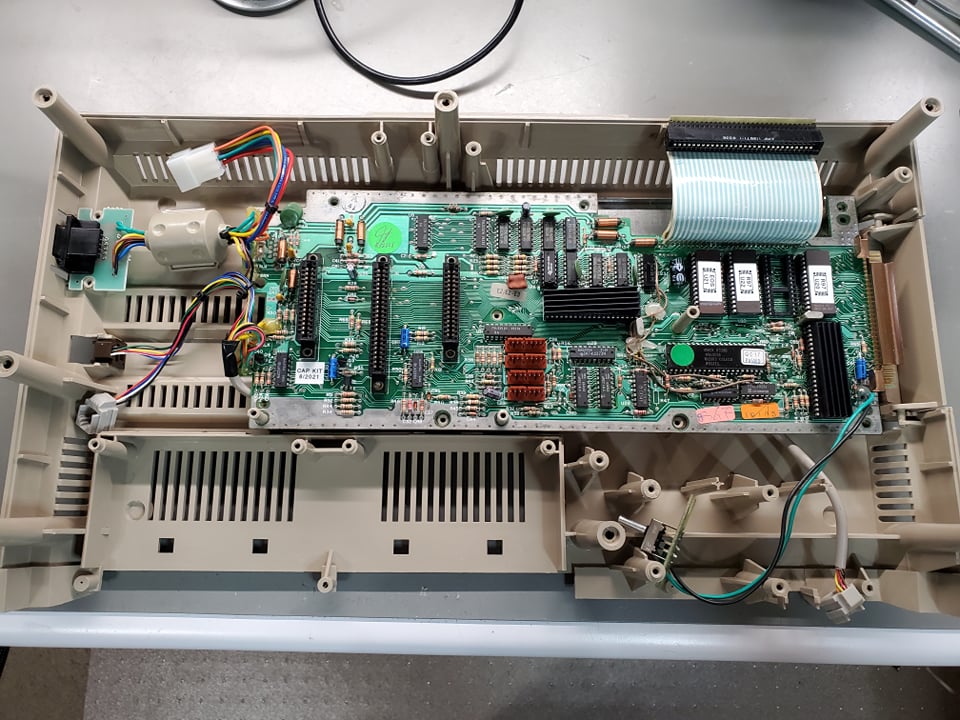

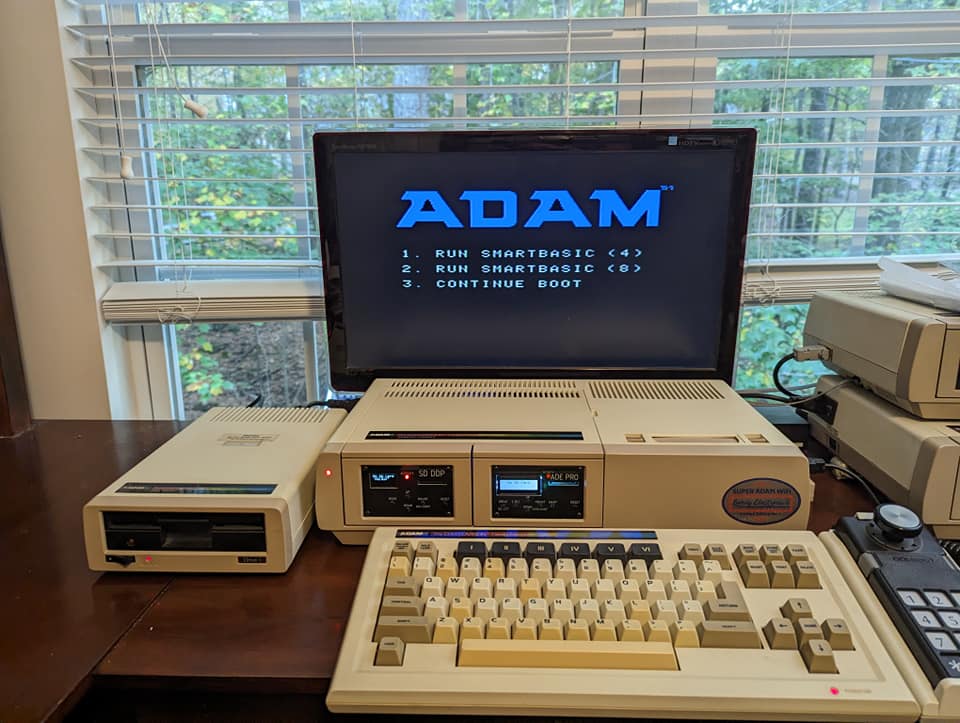

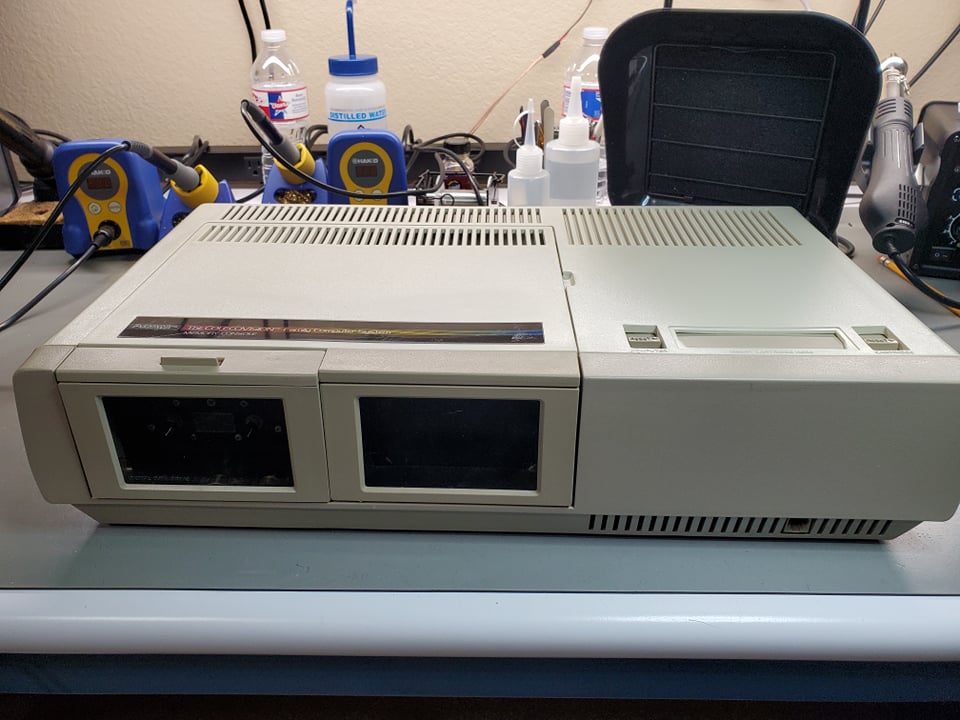

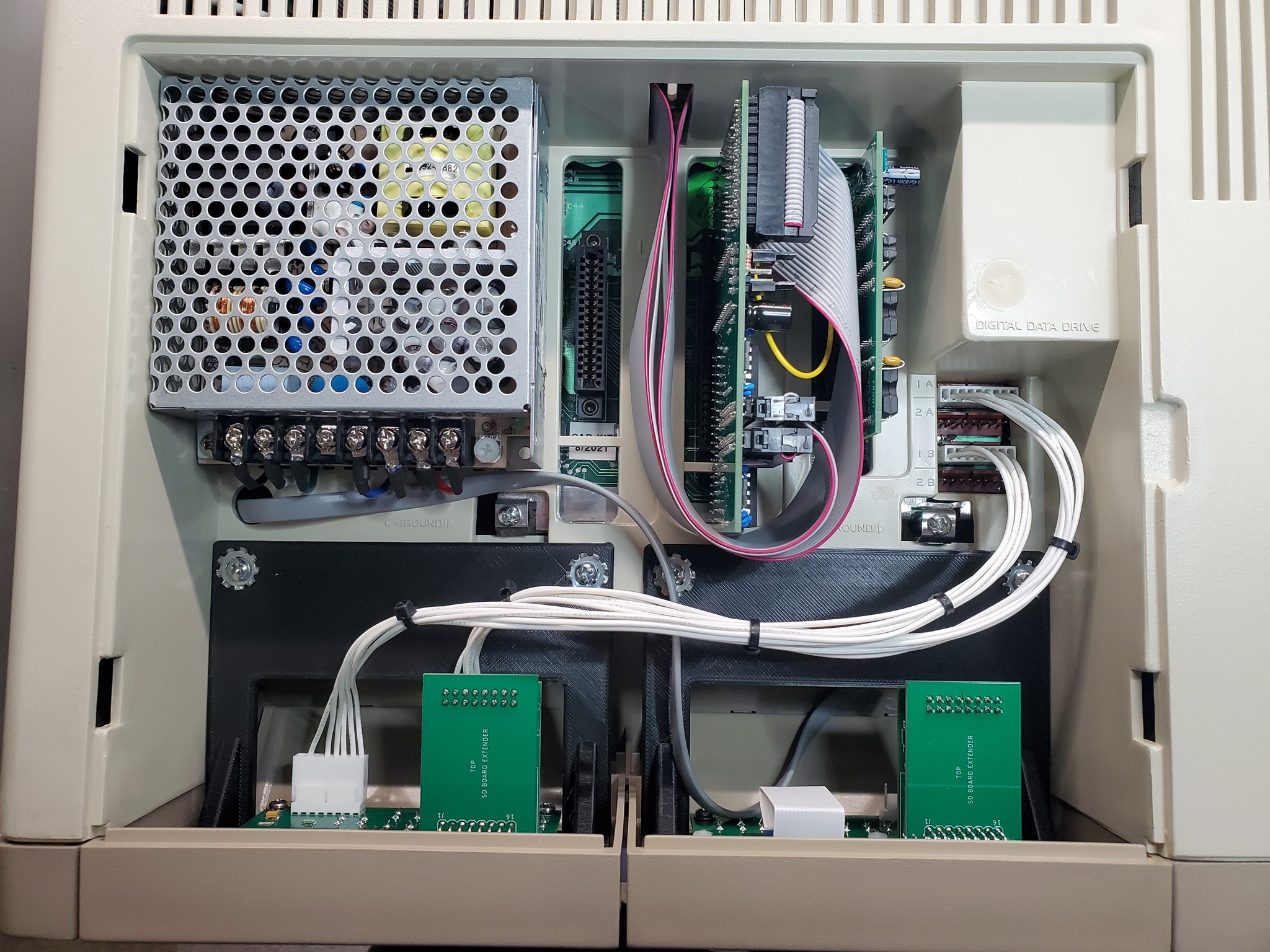

SuperADAM WiFi Gallery

SuperADAM 2022

Modified by John Lundy (2022)

Lundy Electronics

Power

- Internal power supply

Video & Audio

- C88 audio fix
- RCA audio connector

Board Upgrades

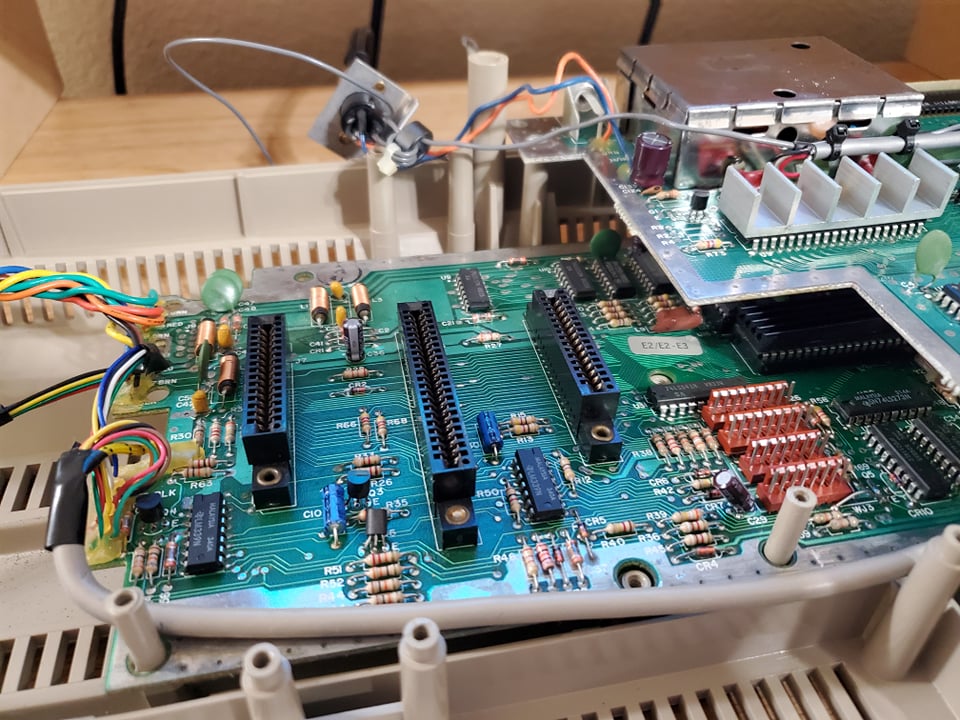

- Installation of console capacitor kit (also includes tantalum capacitors not supplied in other kits)
- New cartridge connector installation
- New all metal high quality 7-Pin DIN connector installation
- Ultrasonic cleaning of Gamma to Delta board connector and fingers
- Ultrasonic cleaning of existing 7-Pin DIN connector

Connectivity & Expansion

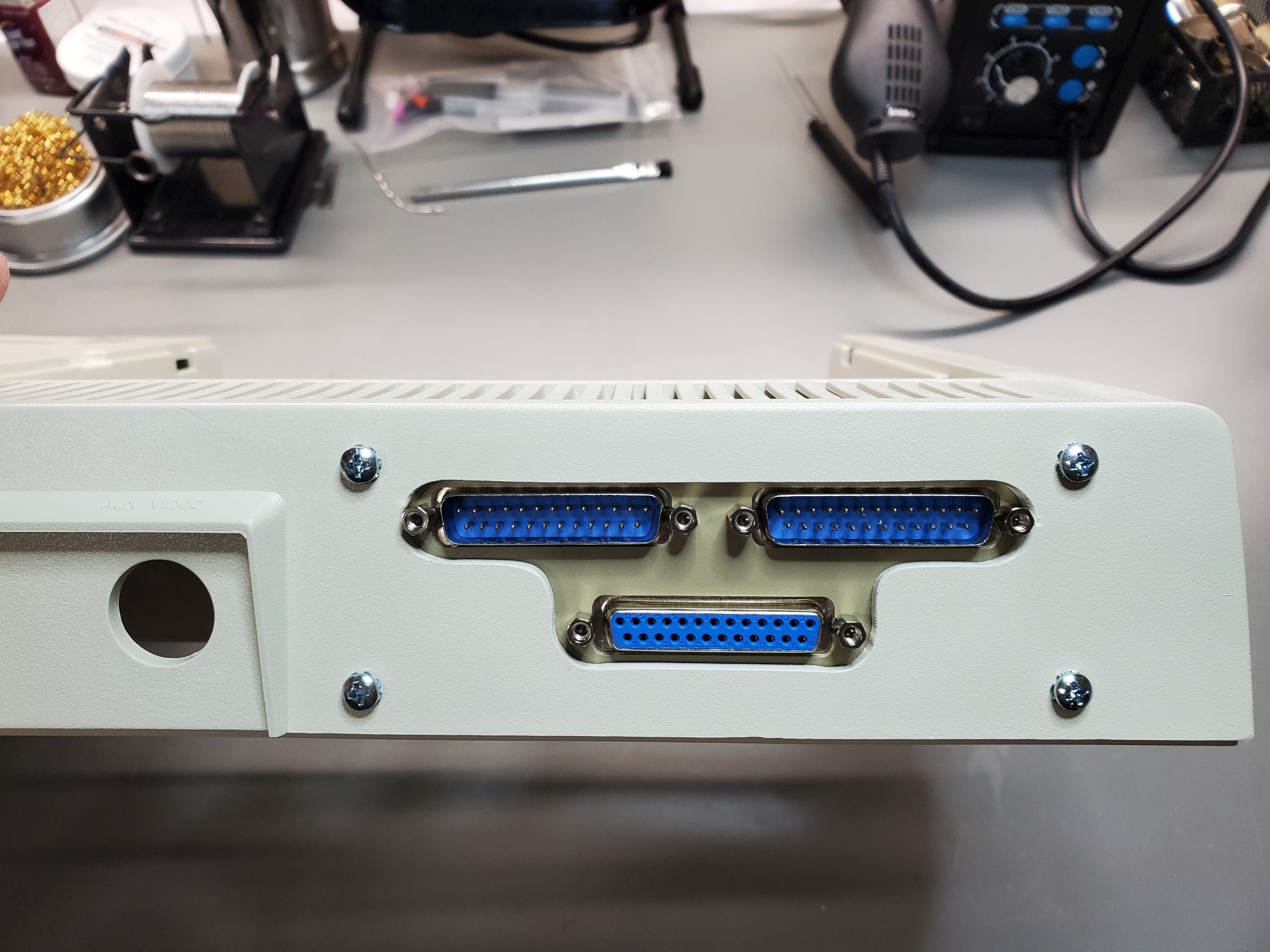

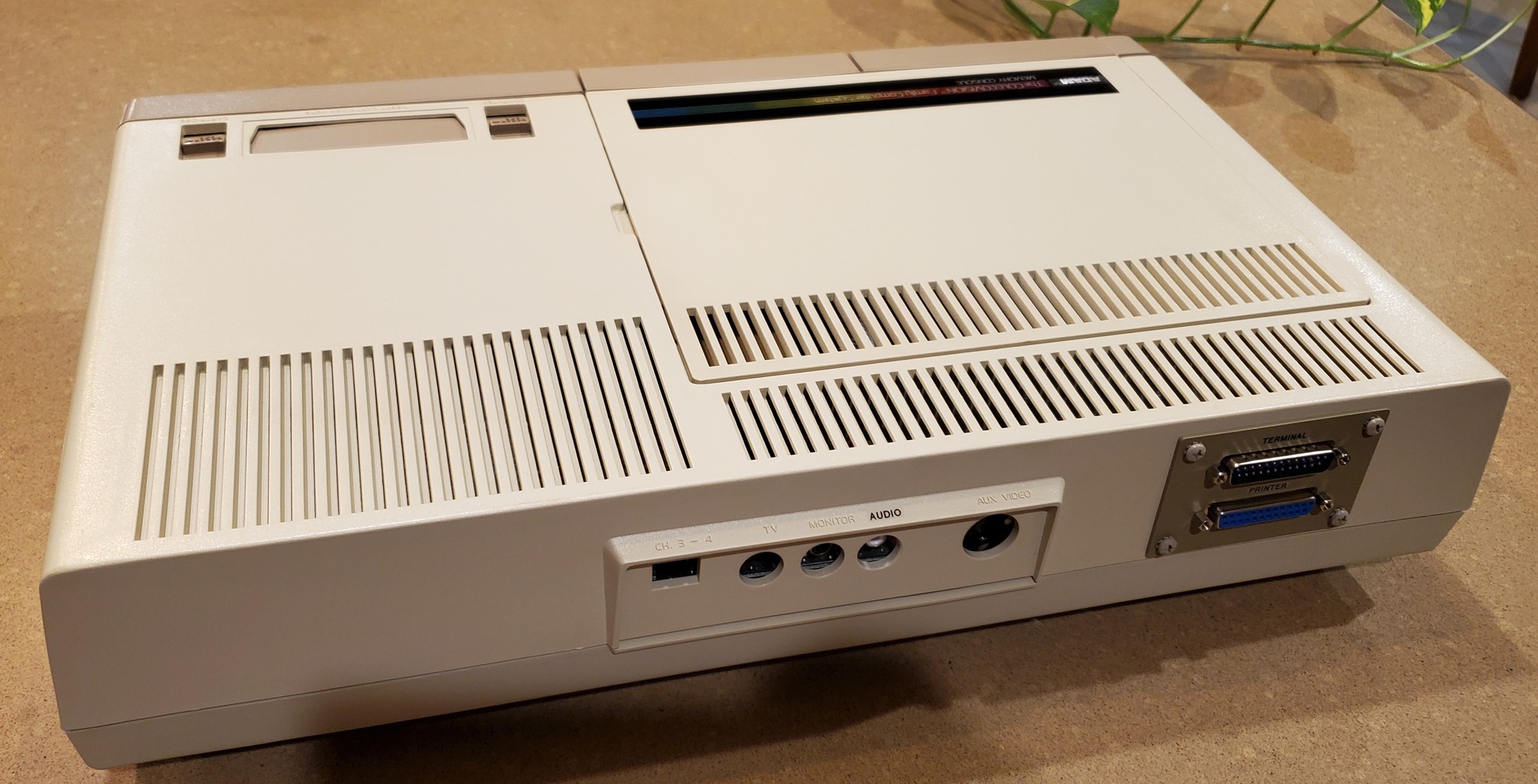

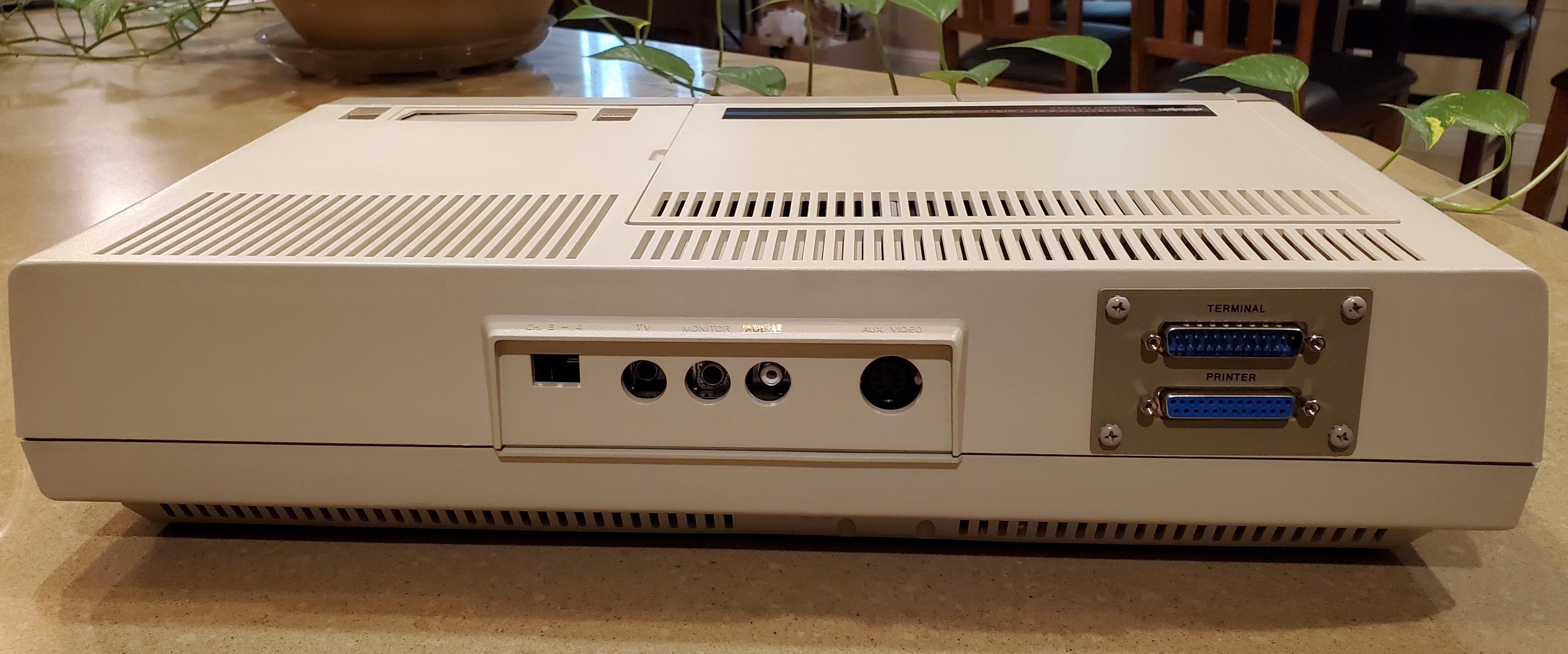

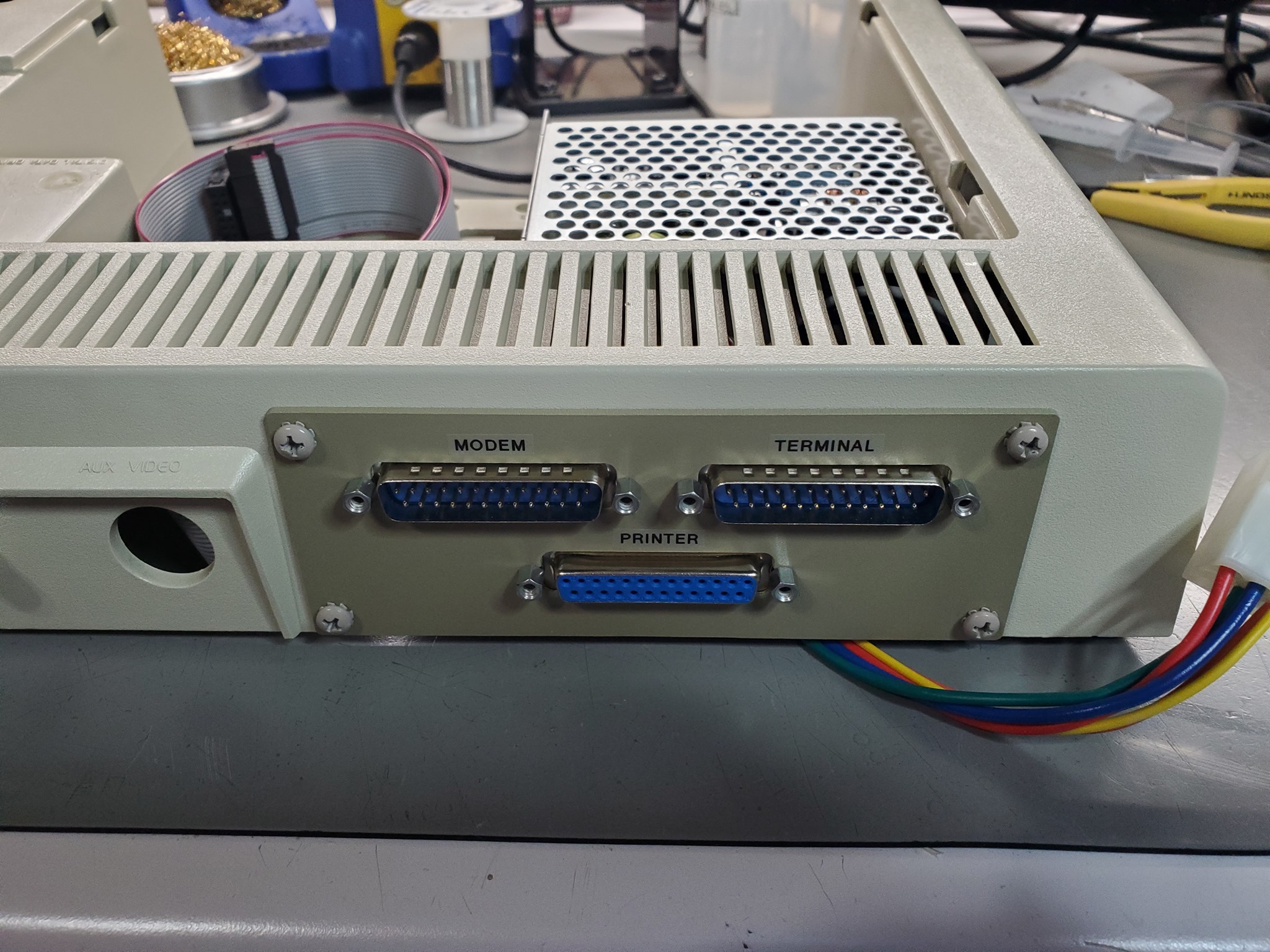

- Internal COM ports (2 serial and 1 parallel). *Requires an MIB238, MIB2, or MIB3 card
- Internal ADAMnet connection

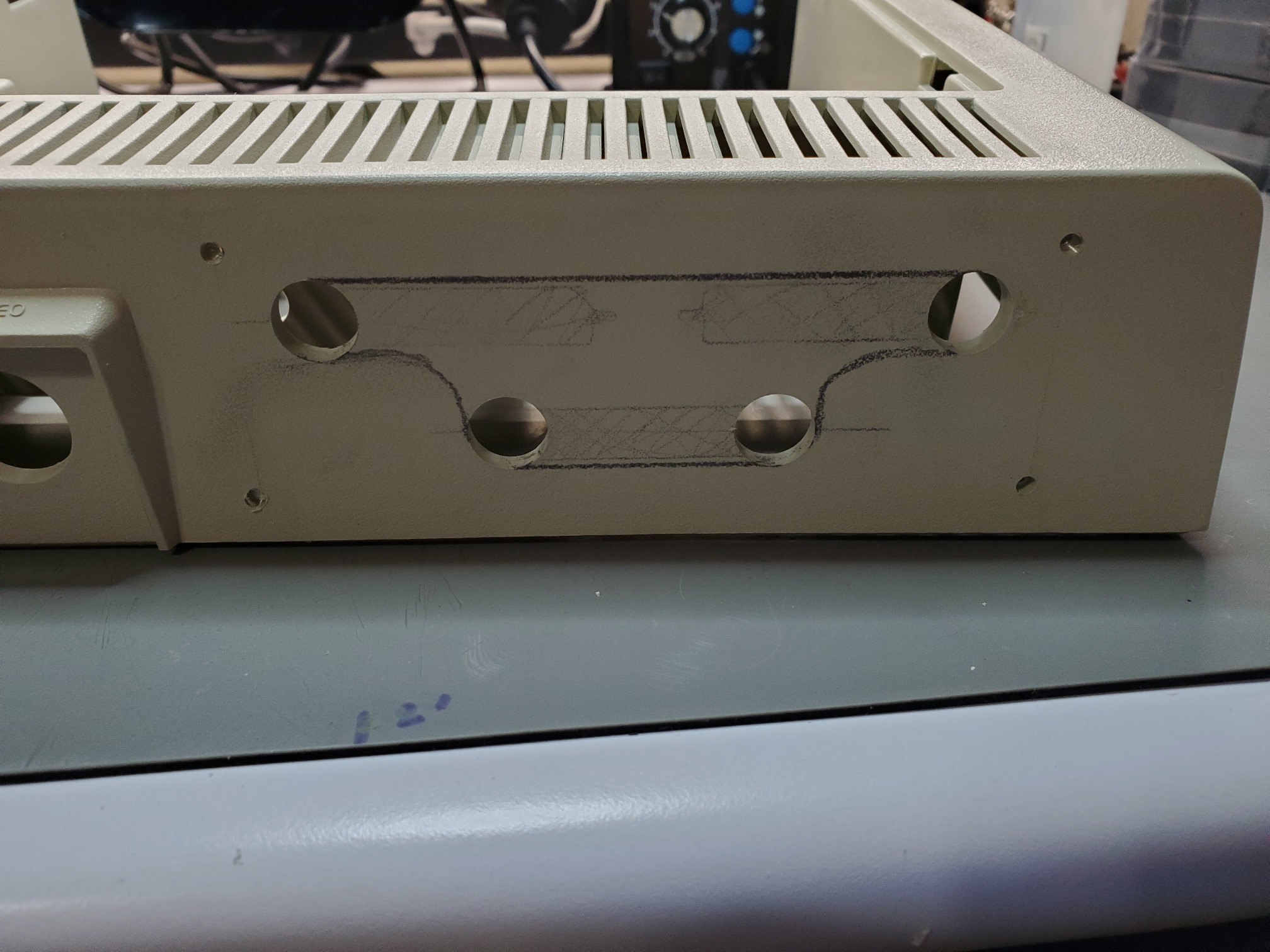

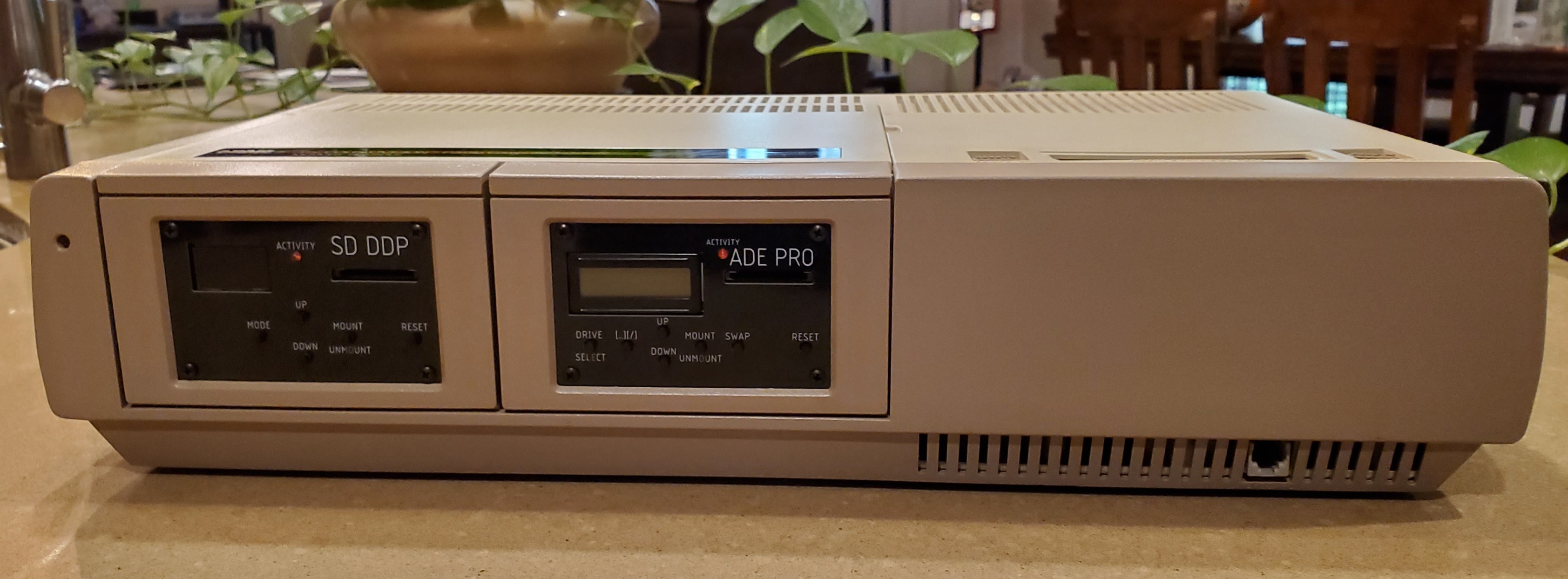

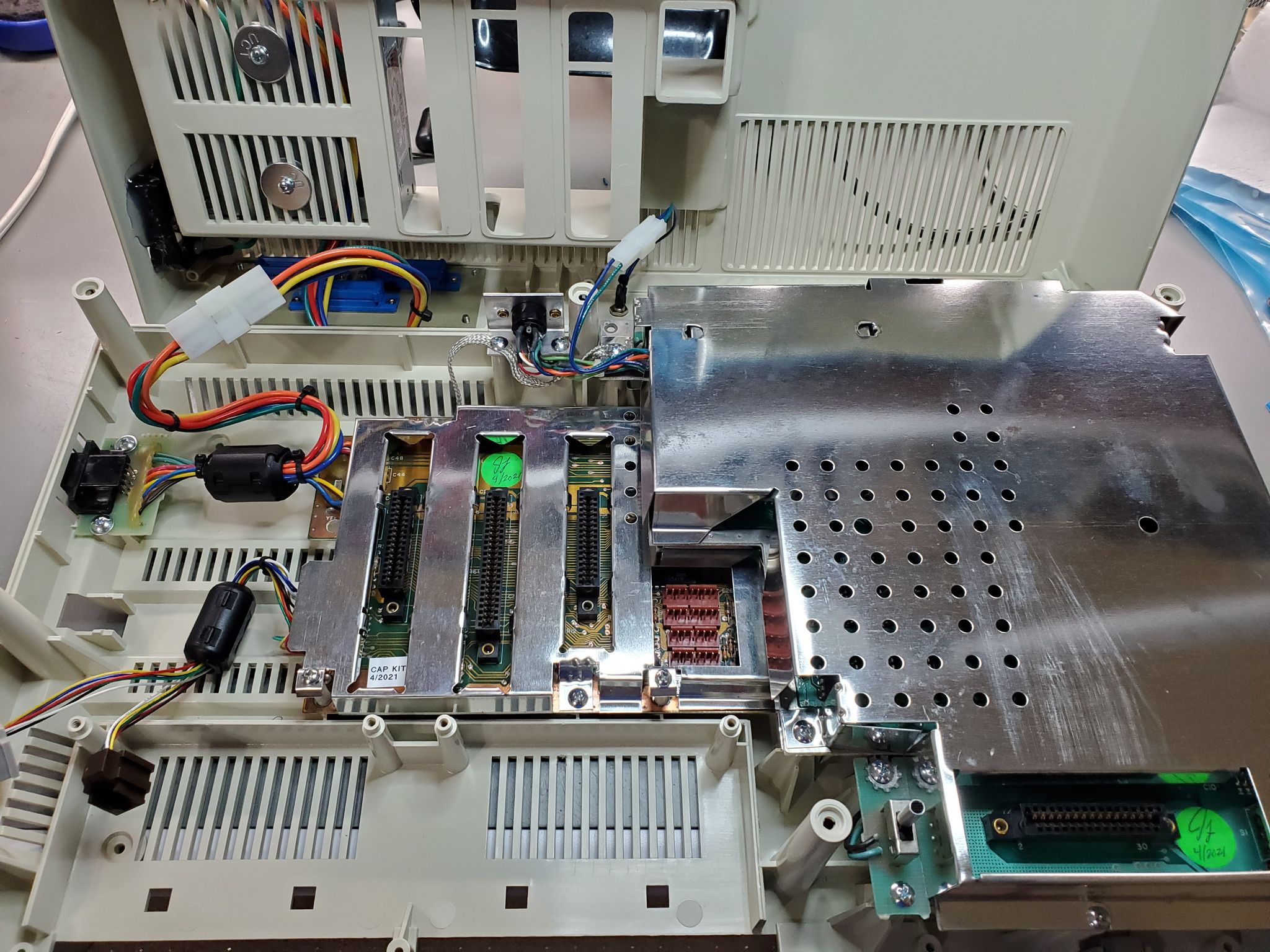

SuperADAM 2022 Gallery

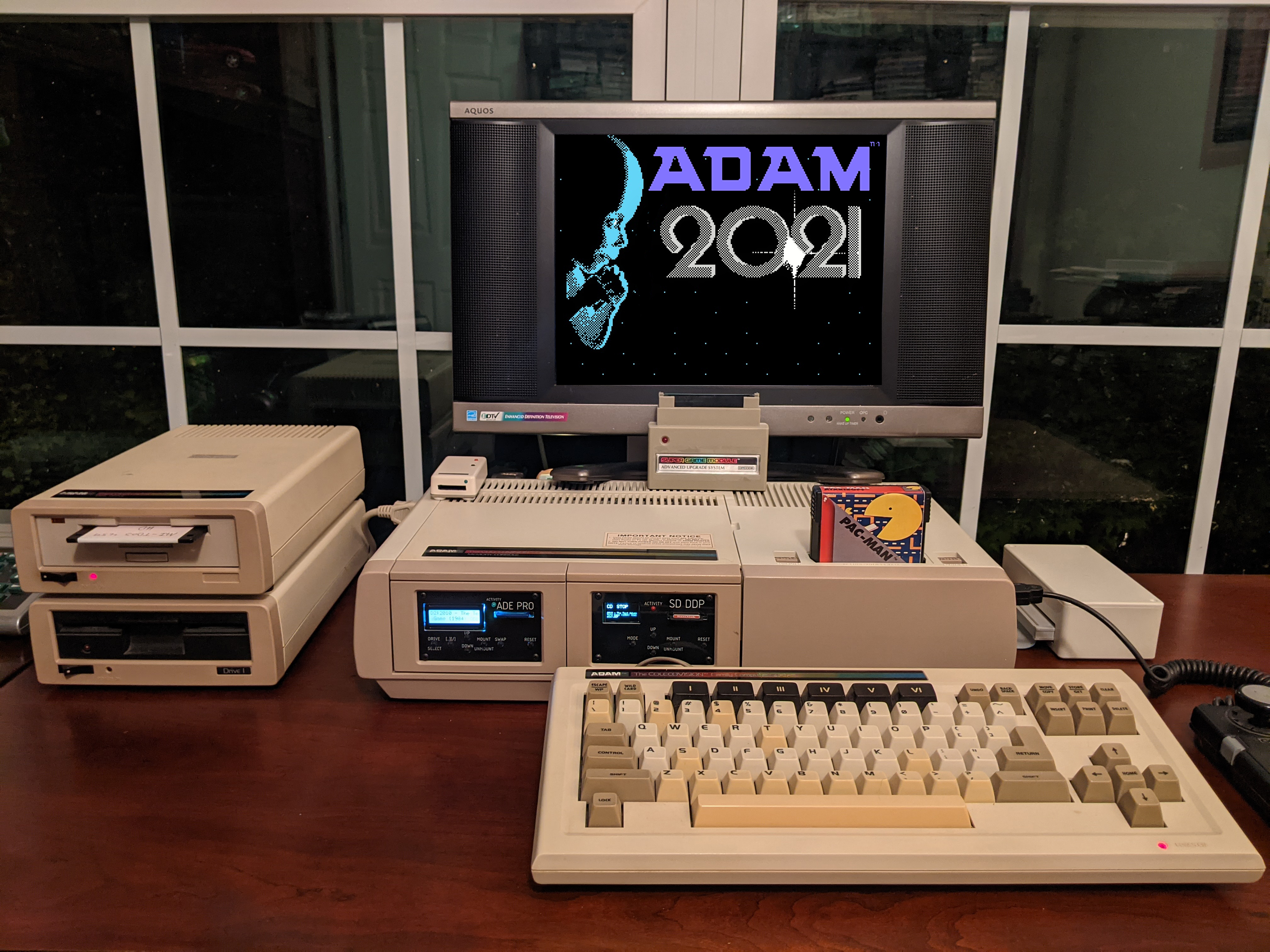

SuperADAM 2021

Modified by John Lundy (2021)

Lundy Electronics

The original SuperADAM. The console that started it all — a fully modded ADAM with internal power supply, audio fix, and clean internal connectivity.

Power

- Internal power supply

Video & Audio

- C88 audio fix
- RCA audio connector

Board Upgrades

- Installation of console capacitor kit (also includes tantalum capacitors not supplied in other kits)
- New cartridge connector installation
- New all metal high quality 7-Pin DIN connector installation
- Ultrasonic cleaning of Gamma to Delta board connector and fingers
- Ultrasonic cleaning of existing 7-Pin DIN connector

Connectivity & Expansion

- Internal COM ports (2 serial and 1 parallel). *Requires an MIB238, MIB2, or MIB3 card
- Internal ADAMnet connection

SuperADAM 2021 Gallery

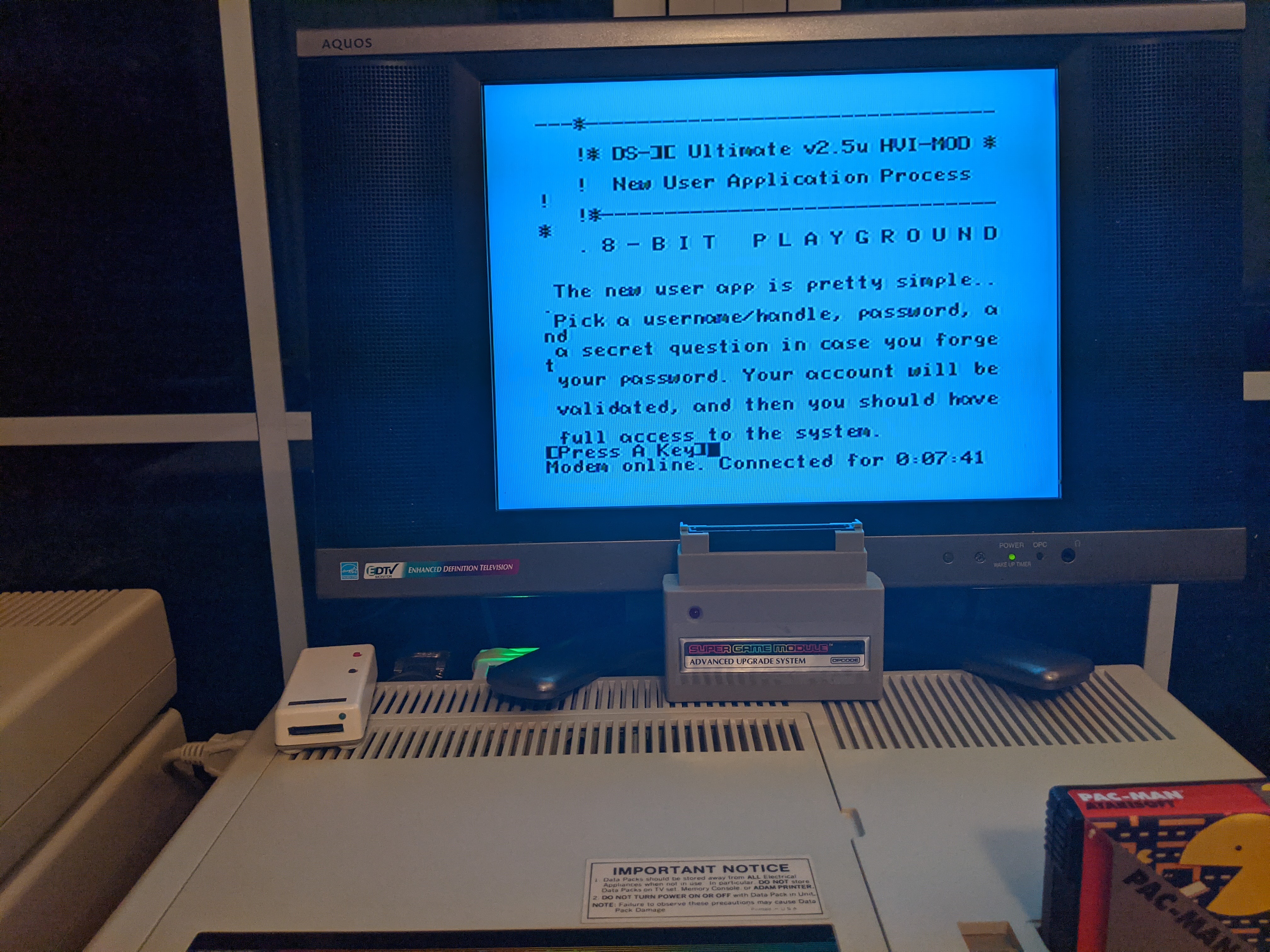

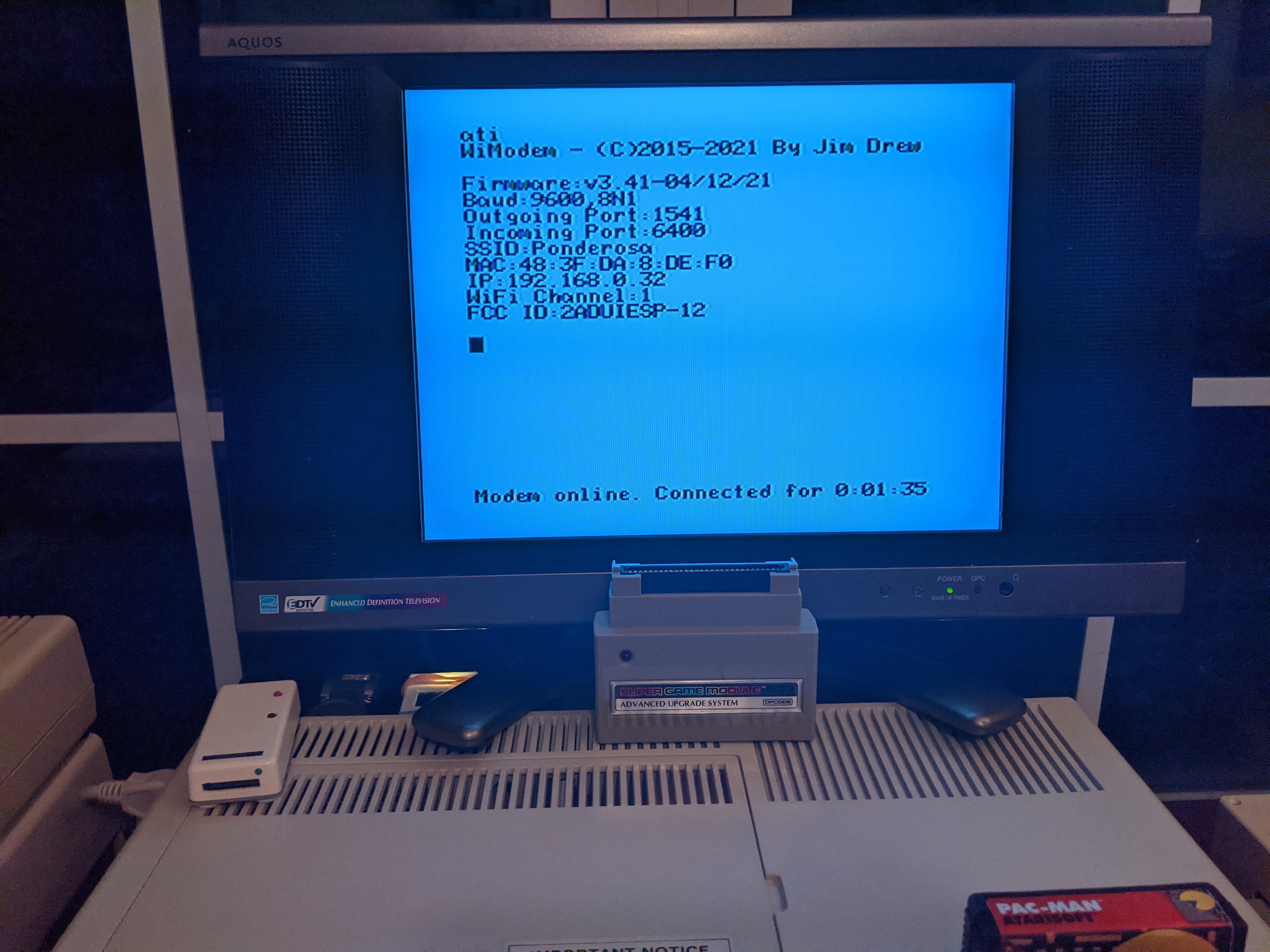

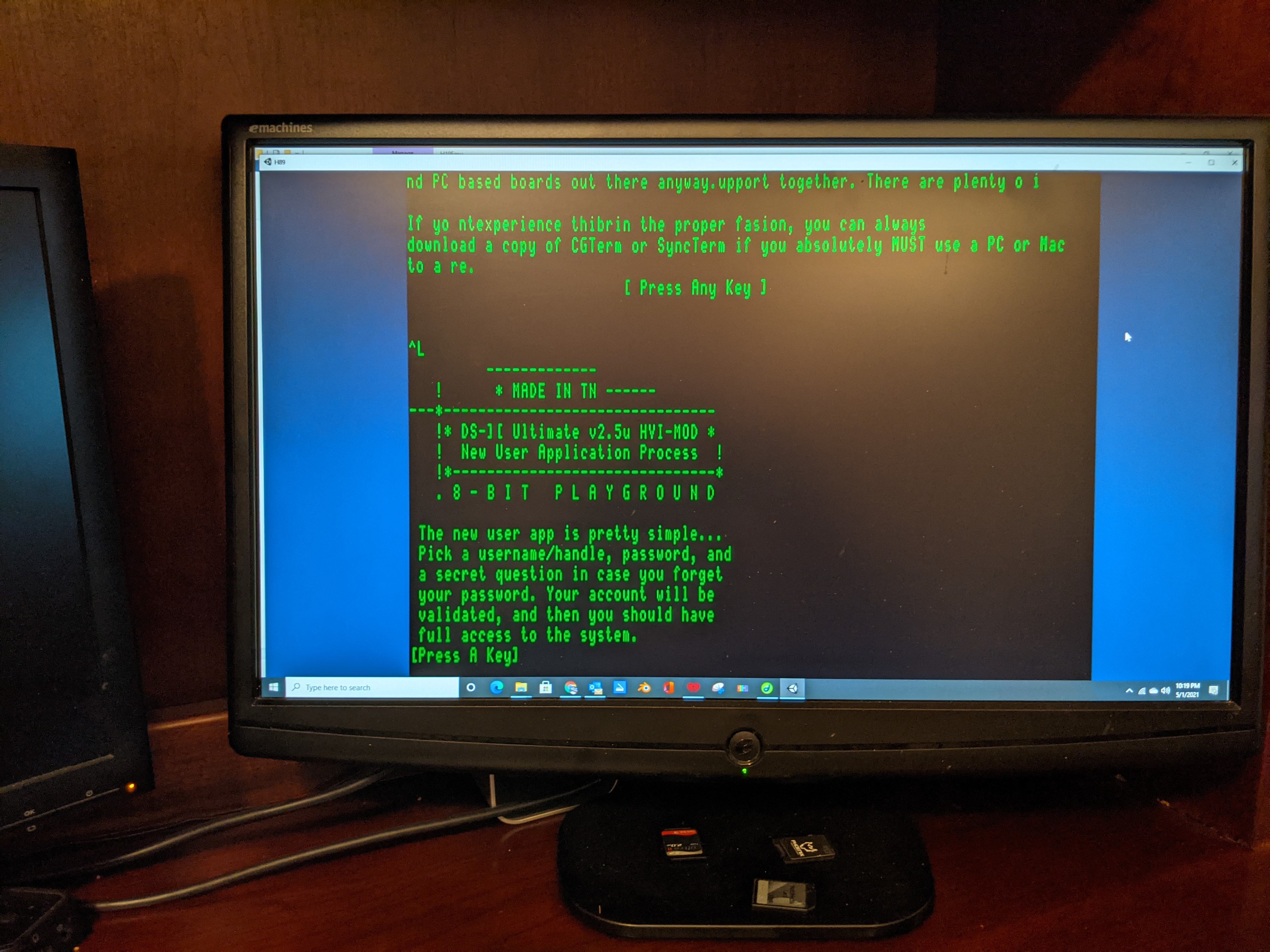

Online at 9600 Baud over WiFi and using 80 Column Terminal on a PC

Compare All Models
Click any model column header to view that unit

Feature	2026 ★	WiFi	2022	2021
Case & Cosmetics
Console Color	Dark Beige (Rare)	Standard	Dark Beige (Rare)	Standard
Custom COM Bracket (Rear)	✓ Dark Beige Powder Coated	✓ Machined	—	—
Nothing Exits Top Cover	✓	✓	✓	✓
SuperADAM Brushed Aluminum Decal	✓ Professionally Printed	—	—	—
New Label Set	✓	—	—	—
Matching Dummy Data Drive Bezels	✓	—	—	—
New Sponge Rubber Feet	✓	—	—	—
Thoroughly Cleaned PCB	✓	✓	✓	✓
Polished I/O Fingers	✓	✓ Chrome Finish	—	—
Power
Internal Power Supply	✓	✓	✓	✓
IEC Fused Power Input Module	✓	✓	—	—
Left Side Power Switch	✓ Front-Mounted	✓	✓	✓
Red LED Power Indicator	✓ Front Left	✓	✓	✓
Video & Audio
VGA Output Option	No-Cut Beige Bracket *	—	—	—
Composite + Dedicated Audio RCA	Factory-Look Recessed *	✓	✓	✓
Socketed VDP (Swappable)	✓	—	—	—
Audio Balance Fix (SGM/Speech)	✓	✓ C88 Fix	✓ C88 Fix	✓ C88 Fix
Board Upgrades
Delta Board DRAM → SRAM	✓	— (4164 DRAM + sockets)	—	—
Gamma Board DRAM → SRAM	✓ NEW — Unreleased Product	—	—	—
Complete Capacitor Kit (incl. Tantalum)	✓	✓	✓	✓
New Cartridge Connector	✓	✓	✓	✓
Ultrasonic Cleaned Joystick Connectors	✓	✓	✓	✓
Connectivity & Expansion
MIB238-WiFi Board	✓	✓	✓ MIB238	✓ MIB238
RAM Expander	✓ 1MB	✓1MB	—	—
Internal ADAMnet w/ Printer Reset Silencer	✓ +5V Side Connector	✓	✓	✓
Internal COM Ports	✓ Via MIB238	✓	✓	✓
Storage
Internal Drive Emulator (ADE)	✓	✓ ADE Pro	✓ ADE Pro	✓ ADE Pro
SD DDP (Internal SD Data Drive)	✓	✓	✓	✓
External Data Drive + Housing + Cable	✓	—	—	—
Software & Boot
SmartBASIC XROM (Instant Boot)	✓ MIB238 Boot ROM Socket	✓ w/ AJM Printer Patch	—	—
R89 SmartWRITER PROMs	—	✓ w/ Parallel Printer	—	—
* Video output determined by community poll. VGA option includes no-cut beige bracket over RF/TV/monitor area; composite option adds recessed audio RCA. Socketed VDP allows easy reversion to factory video.
